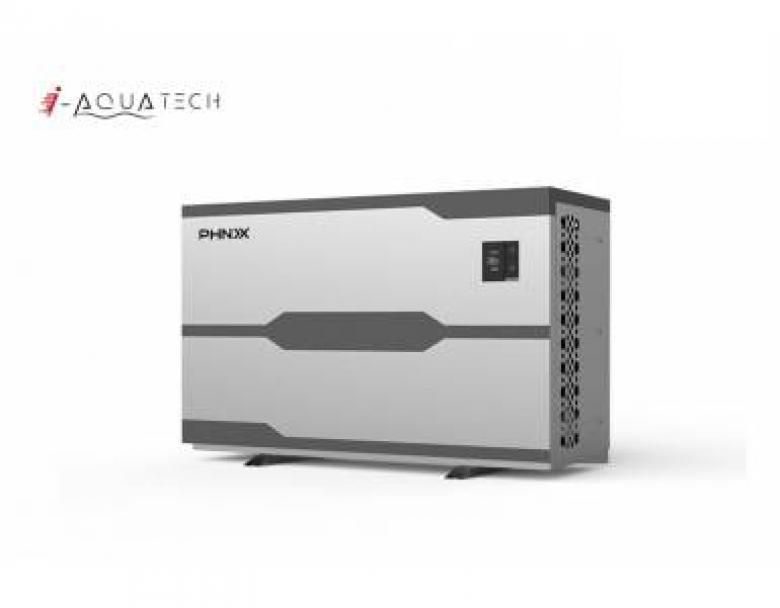

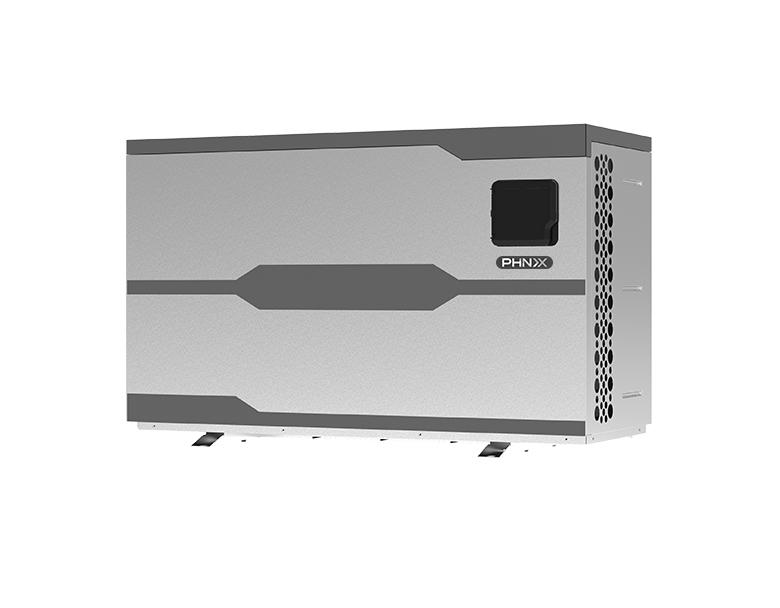

i-ExpertLine Iron Full Inverter Swimming Pool Heat Pump
i-ExpertLine Iron Full Inverter Swimming Pool Heat Pump
i-ExpertLine Iron Full Inverter Swimming Pool Heat Pump

i-ExpertLine Iron Full Inverter Swimming Pool Heat Pump

Top Swimming Pool Heat Pump Supplier

Targeting the globle high-end market, PHNIX full inverter swimming pool heat pump- i-ExpertLine Iron has been carefully conceived and designed to be modern in appearance, super silent and highly efficient during operation and smart in controlling.



Features:

*R32 Refrigerant

*Sheet Metal Cabinet

*APP Control

*Double-side Airflow Outlet

*Noise Reduction Technology= 39dB(A)

*COP 16

*Powered by i-Aquatech Technology



Global certification available! OEM Partner Wanted!



  • Details

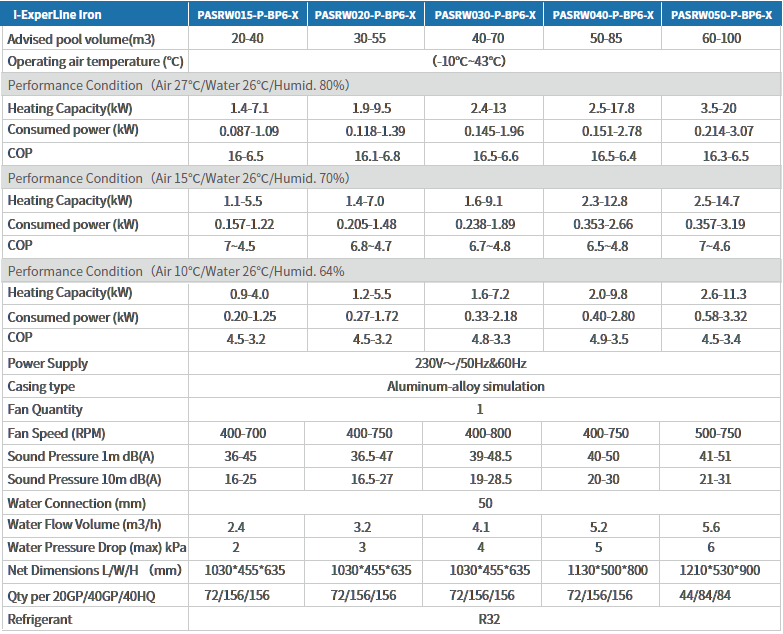

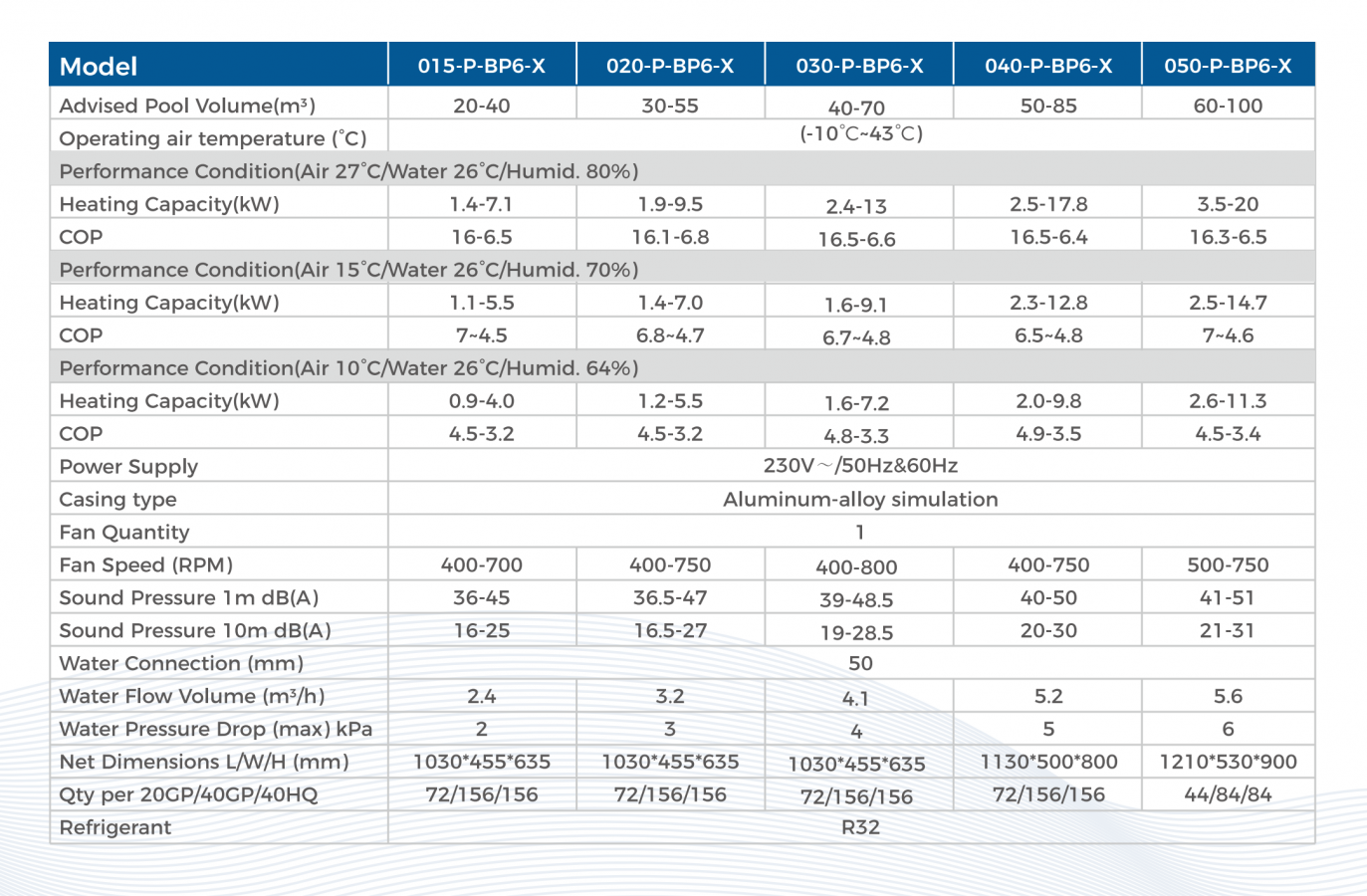

  • Parameters
  • Download

Smart Control

Smart APP control brings a lot of convenience to users. Temperature adjustment, mode switching and timer setting can be achieved on your smart phone. Plus, you can know power consumption statistics and fault record anytime and anywhere.


Smart Control

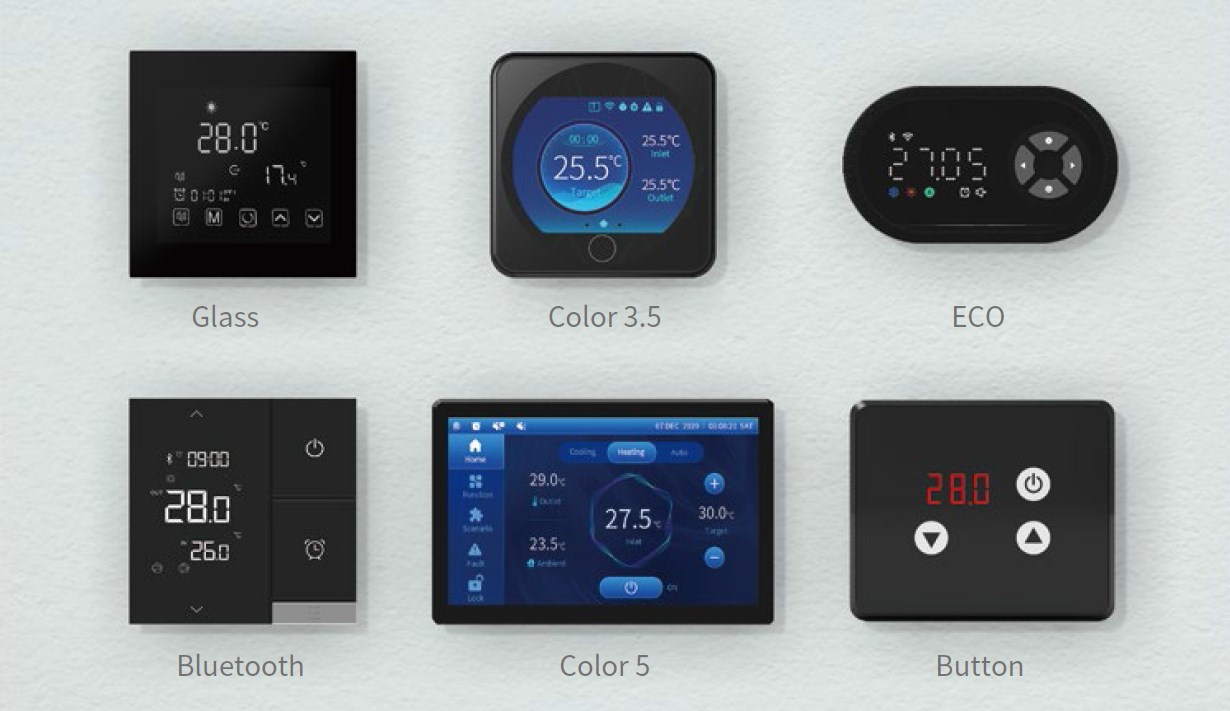

Multiple Smart Display For Option

*32-Bit Processor    PHNIX displays have been updated with a 32-bit processor, which enables a fast and smooth operation.

*Customized Fashionable UI  For the touch color displays, PHNIX can provide different customized UI designs for you. Customers can have their own logos or VI on the designs for their markets.

*Protective Cover  PHNIX display is of high quality and long service life for the reason that a protective cover is fitted on the display if it is installed on the heat pump rather than on the indoor wall, so as to protect it from the rain, sunshine, etc.

*Smart App Control  With a PHNIX pool heater App in your phone, you can not only remotely turn on/off the heat pump, set your pool water temperature, but also check energy consumption curve during the week. Consequently, an easy click can bring you comfortable swimming as soon as you arrive home.

Multiple Smart Display For Option

Full Inverter Technology

Unlike a traditional heat pump with a single-speed compressor which by switching on and off periodically to adjust the performance of the heating & cooling, a full inverter heat pump uses a variable speed compressor which can automatically adjust the output needed at the lowest consumption of power and maintain the best temperature at different climatic conditions. When the heating demand is high, the inverter compressor and the fan motor will start running at a high speed, inversely, they will run at a low speed.

Full Inverter Technology


Full Inverter Technology

Stepless control

Compressor can selfcontrolled with 5Hz/Step under its operating range.

Stepless control

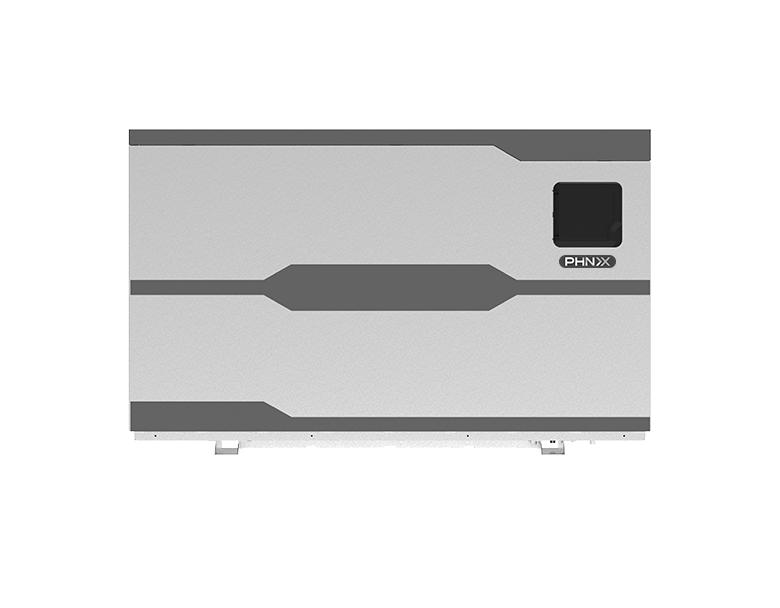

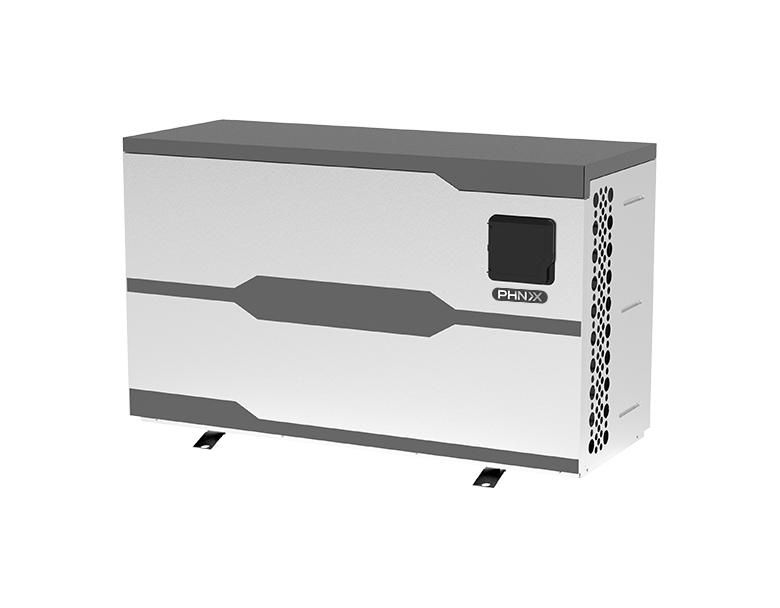

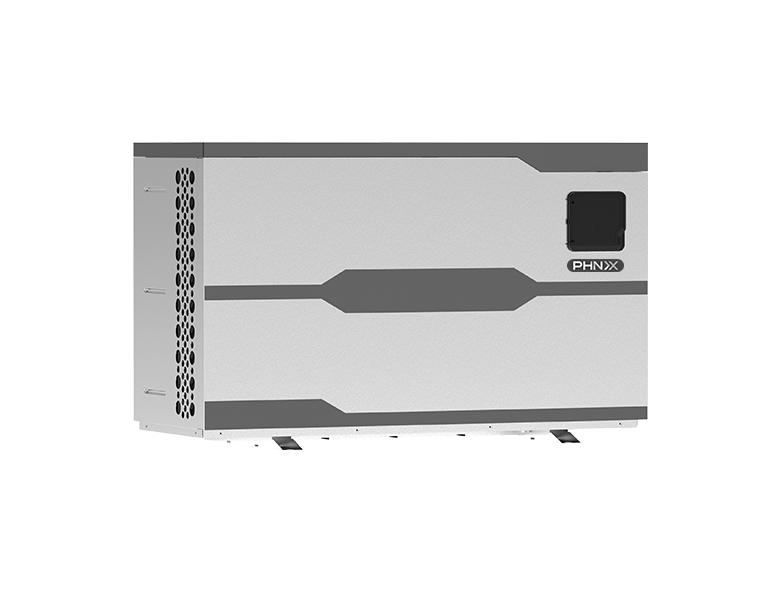

Matt-finished Sheet Metal Cabinet

On the cabinet, the lively interplay of matt-finished surfaces combined with irregular shaped pattern is reminiscent of a high-performance swimming pool heat pump products.

The special surface comes from the tough iron material which is beneficial for a long service life and strong sun-protective characteristic. As the top heat pump supplier in China, IRON Series pool heat pump is creative with not just special surface but also special designs which should definitely be a perfect decoration of your garden.

It is an ideal pool heating solution for your all year pool fun.

Matt-finished Sheet Metal Cabinet

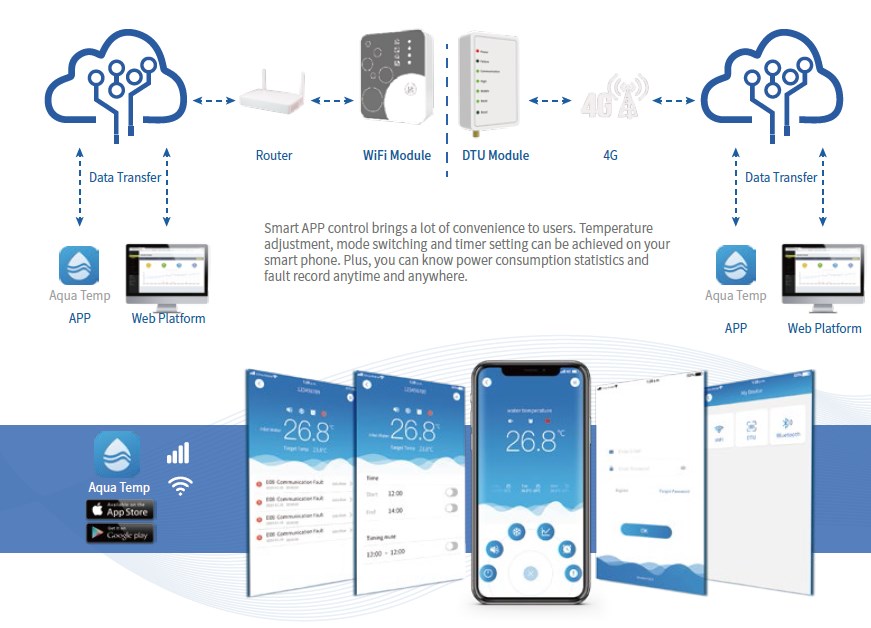

APP Control

Simplify your life with AQUA TEMP.

Via connection by Bluetooth, Wi-Fi and 4G, your can take full control of your swimming pool heat pump from anywhere in your home or office with a single app on your smartphone.

PHNIX smart app  is working as your personal butler who can directly fulfill your desire of distance controlling and achieve a truly anywhere, at any time, moving to control your swimming pool heat pump.

So smart to maximize your comfort !PHNIX Smart APP control for your swimming pool with a simple user interface and multiple pump settings allows for customized operation to both meet your pool using schedule and maximize efficiency.

APP Control

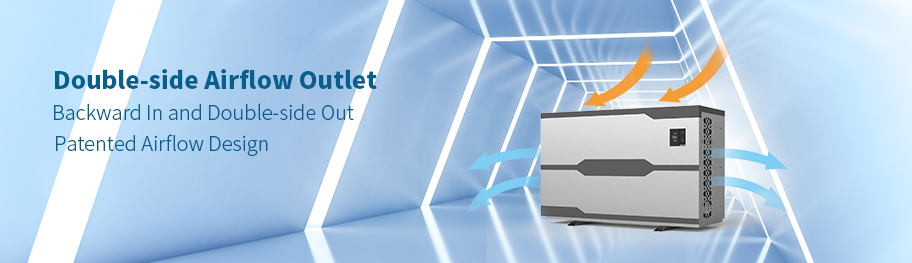

Double-side Airflow Outlet

The unit uses PHNIX own patent double-side airflow cabinet which through years of application in the market is proven to be highly efficient in heat exchange and outstandingly silent during operation.

With unique airflow design ( air input from front frame and discharged from double sides), IRON can be installed closed to wall or even at a corner, while running perfectly with high efficiently.


It dopts PHNIX own patent unique airflow design which allows the air inlet from the back and outlet from the double sides, making it all possible and flexible to fit into narrow installation environment.

And it is also worth noting that thanks to the special airflow design, the unit is highly efficient in heat exchange and silent during running.


Double-side Airflow Outlet

Low Noise Running

If you've ever been kept awake at night by the sound of a pool heater working away you will understand the need for finding the best quiet swimming pool heat pump right? Whether it's for a better swimming pool environment or a friendly neighborhood, a quiet swimming pool heat pump is a wonderful thing!!


There is no doubt that a silent pool heat pump can help to create fantastic swimming experiences for users.

i-ExpertLine Iron full inverter swimming pool heat pump uses a fully enclosed cabinet which is specially designed to reduce the noise of the compressor to a minimum so that the running noise can be kept inside and the noise of the whole unit can maintain very low.


Low Noise Running


Low Noise Running

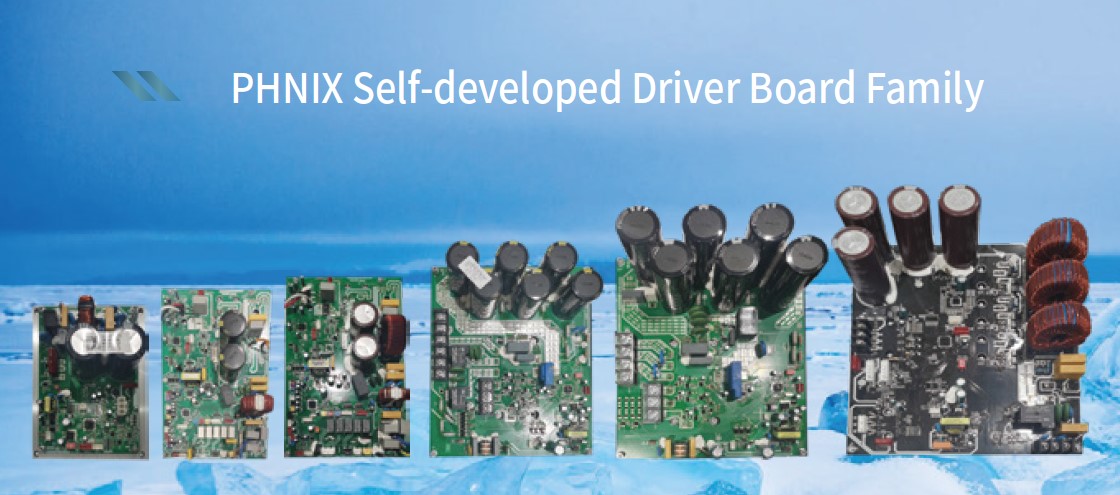

PHNIX Self-developed Driver Board

* Full Model Range

PHNIX swimming pool heat pump has a full model range covering from domestic to commercial applications. In China, an inverter swimming pool heat pump has been successfully applied on commercial occasions.


*Remotely Software Update

If there is any error happens in the software, PHNIX can do the remote service by updating the software online. And when the software has a new version with function upgraded, as long as PHNIX gotyour permission, the software update can be done remotely.


*Self-designed Driver Board Control Logic

To ensure PHNIX鈥檚 product with the more stable operation and longer service life, PHNIX鈥檚 swimming pool heat pump product uses its self-design driver board with its unique control logic which enables a more suitable running condition for its compressor.


*Centralized Control

Each PHNIX heat pump uses the power board and current sampling module with the most innovative technology.


*Self-designed Structure

The unique structure of each PHNIX heat pump can perfectly match with the heat pump itself and very convenient for its after-sales service as well.

PHNIX Self-developed Driver Board

Powered by i-Aquatech Technology

Powered by i-Aquatech Technology stands for the newest optimized technology specific to PHNIX swimming pool heat pump products.


Powered by Powered by i-Aquatech Technology, the heat pump runs at PHNIX unique inverter technology, maintaining the max stability and greatly reducing the energy consumption during running.


Moreover, heat pump with Powered by i-Aquatech Technology technology can create an extraordinary quiet swimming environment for users for super low noise it will produce.


Also, heat pump powered by Powered by i-Aquatech Technology uses the most leading designs both on internal structure and appearance, enabling the unit to run with high efficiency, installed flexibly and perfectly blending with your swimming environment at the same time.


Powered by i-Aquatech Technology

i-ExpertLine Iron Full Inverter Swimming Pool Heat Pump
