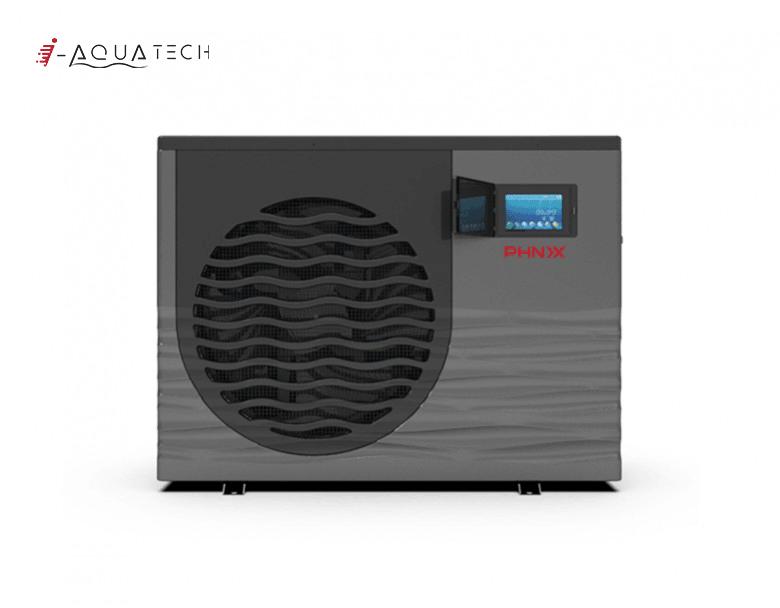

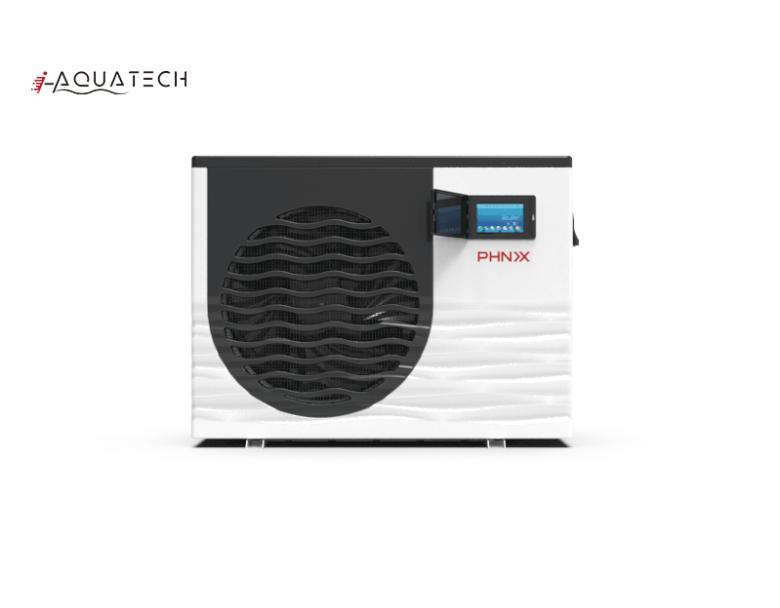

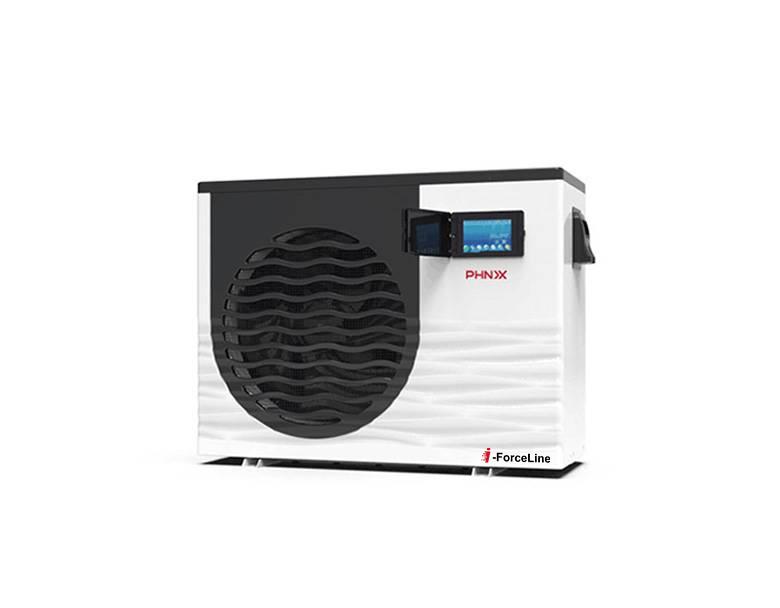

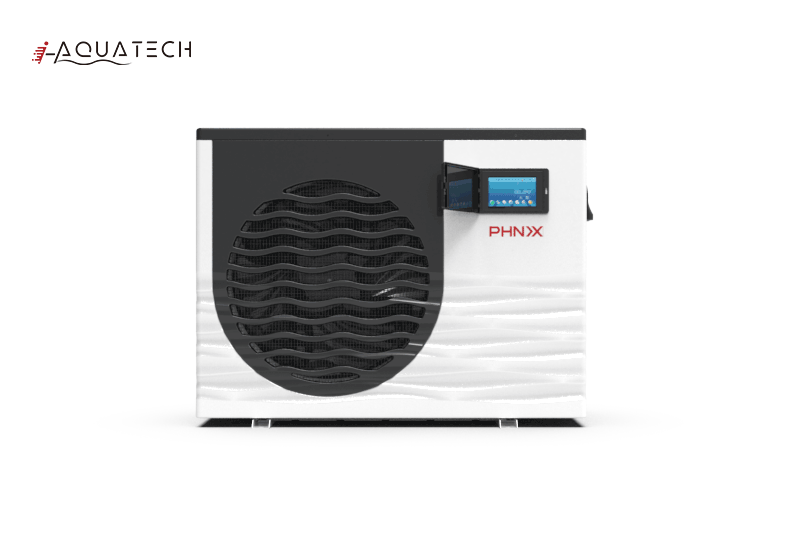

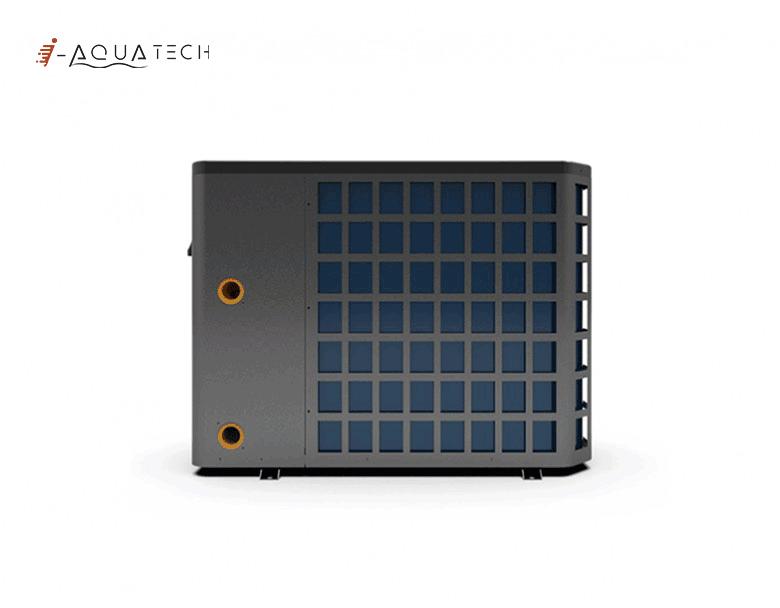

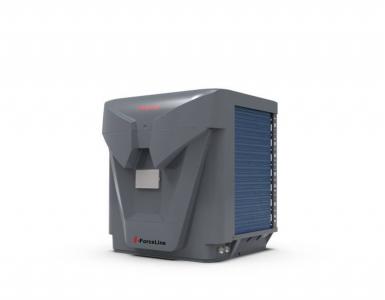

i-ForceLine X Full Inverter Swimming Pool Heat Pump
i-ForceLine X Full Inverter Swimming Pool Heat Pump
i-ForceLine X Full Inverter Swimming Pool Heat Pump
i-ForceLine X Full Inverter Swimming Pool Heat Pump
i-ForceLine X Full Inverter Swimming Pool Heat Pump

i-ForceLine X Full Inverter Swimming Pool Heat Pump

21 years pool heat pump supplier, Quote now!

Patent heat pump technology, high COP, top heater brand from China.

Featured with mature Inverter technology, i-ForceLine X Full Inverter Swimming Pool Heat Pump achieves an extremely high COP compared with normal heat pumpas in the market. Besides, its heating speed is much faster, which greatly saves energy and enables you to enjoy swimming without waiting for a long time.

  • Details

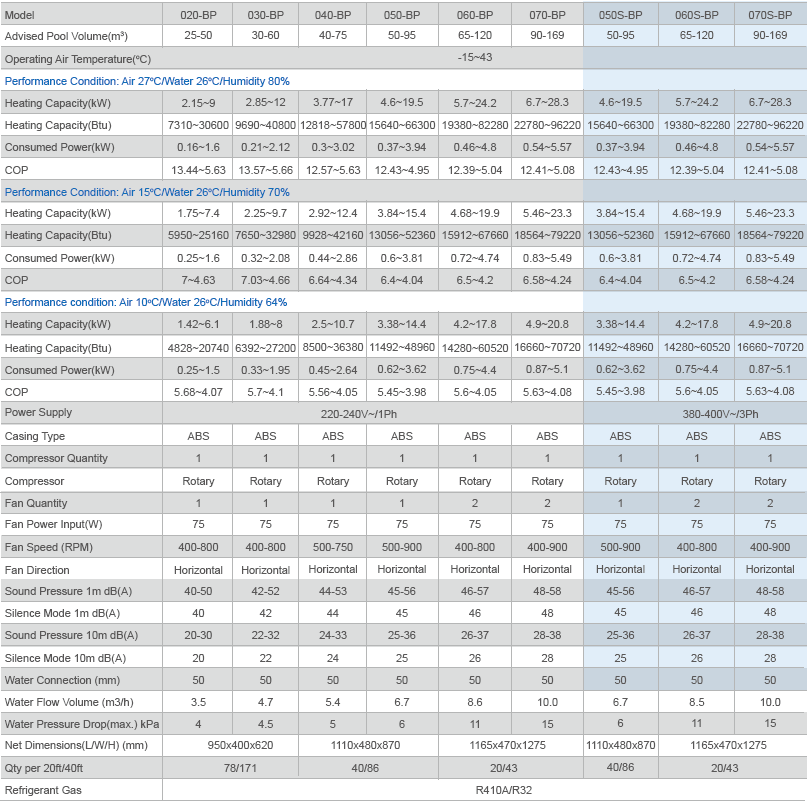

  • Parameters
  • Download

R32 Refrigerant

Compared to the refrigerants widely used today, such as R22 and R410A, R32 has a global warming potential that is two-third lower. R32 is also remarkable for its small environmental impact, which speeds up its popularity in the industry.


R32 Refrigerant


Save Energy and Speed up Heating Time

The units can change the operating frequency of its compressors and fan motors automatically according to user's heating or cooling demand, achieving stepless and fast heating.


Unlike a traditional heat pump with a single-speed compressor which by switching on and off periodically to adjust the performance of the heating & cooling, a full inverter heat pump uses a variable speed compressor which can automatically adjust the output needed at the lowest consumption of power and maintain the best temperature at different climatic conditions. When the heating demand is high, the inverter compressor and the fan motor will start running at a high speed, inversely, they will run at a low speed.



Save Energy and Speed up Heating Time



Save Energy and Speed up Heating Time


Stepless control

Compressor can selfcontrolled with 5Hz/Step under its operating range.



Save Energy and Speed up Heating Time


Stay Silent and Peaceful in Your Backyard

i-ForceLine X inverter heat pump works very silently thanks to its unique ventilation internal system.

PHNIX specially provides a silence mode to make sure a peaseful life for you as well as your neighbor.


Stay Silent and Peaceful in Your Backyard

5-inch Colorful Touch Screen

Unlike normal inverter pool heater, PHNIX Inverter has a high-end controller with 5-inch colorful touch screen. Temperature and power consumption curve makes users always be clear of the energy use situation.


5-inch Colorful Touch Screen

Multiple Smart Display For Option

*32-Bit Processor    PHNIX displays have been updated with a 32-bit processor, which enables a fast and smooth operation.

*Customized Fashionable UI  For the touch color displays, PHNIX can provide different customized UI designs for you. Customers can have their own logos or VI on the designs for their markets.

*Protective Cover  PHNIX display is of high quality and long service life for the reason that a protective cover is fitted on the display if it is installed on the heat pump rather than on the indoor wall, so as to protect it from the rain, sunshine, etc.

*Smart App Control  With a PHNIX pool heater App in your phone, you can not only remotely turn on/off the heat pump, set your pool water temperature, but also check energy consumption curve during the week. Consequently, an easy click can bring you comfortable swimming as soon as you arrive home.

Multiple Smart Display For Option

Smart PCB

PHNIX Smart PCB in the heat pump managers the parts and functions of the unit to work in order, making inverter stronger.


* Full Model Range

PHNIX swimming pool heat pump has a full model range covering from domestic to commercial applications. In China, an inverter swimming pool heat pump has been successfully applied on commercial occasions.


*Remotely Software Update

If there is any error happens in the software, PHNIX can do the remote service by updating the software online. And when the software has a new version with function upgraded, as long as PHNIX gotyour permission, the software update can be done remotely.


*Self-designed Driver Board Control Logic

To ensure PHNIX鈥檚 product with the more stable operation and longer service life, PHNIX鈥檚 swimming pool heat pump product uses its self-design driver board with its unique control logic which enables a more suitable running condition for its compressor.


*Centralized Control

Each PHNIX heat pump uses the power board and current sampling module with the most innovative technology.


*Self-designed Structure

The unique structure of each PHNIX heat pump can perfectly match with the heat pump itself and very convenient for its after-sales service as well.

Smart PCB

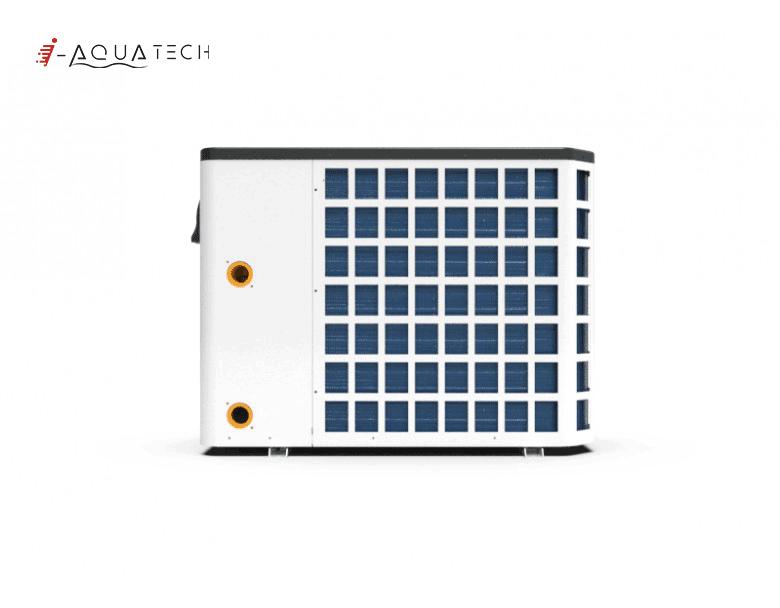

Powered by i-Aquatech Technology

Powered by i-Aquatech Technology stands for the newest optimized technology specific to PHNIX swimming pool heat pump products.


Powered by Powered by i-Aquatech Technology, the heat pump runs at PHNIX unique inverter technology, maintaining the max stability and greatly reducing the energy consumption during running.


Moreover, heat pump with Powered by i-Aquatech Technology technology can create an extraordinary quiet swimming environment for users for super low noise it will produce.


Also, heat pump powered by Powered by i-Aquatech Technology uses the most leading designs both on internal structure and appearance, enabling the unit to run with high efficiency, installed flexibly and perfectly blending with your swimming environment at the same time.

Powered by i-Aquatech Technology

i-ForceLine X Full Inverter Swimming Pool Heat Pump
