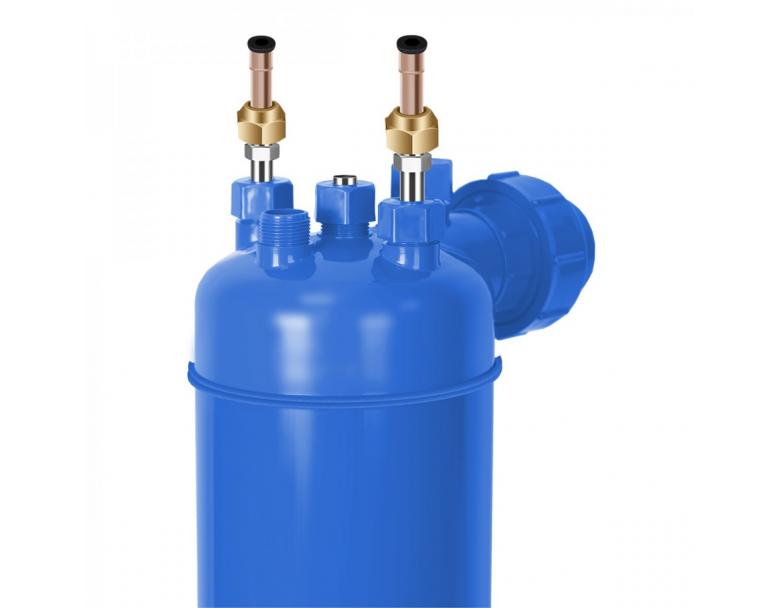

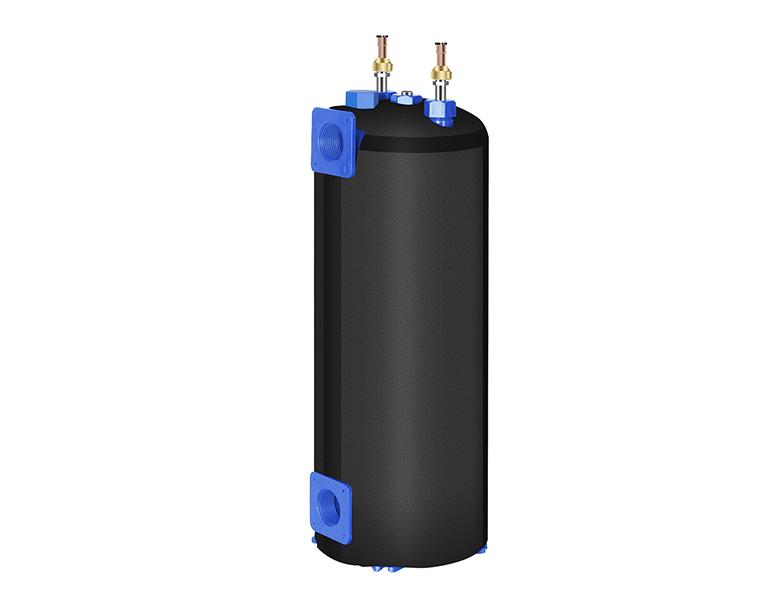

Light Titanium Heat Exchanger
Light Titanium Heat Exchanger
Light Titanium Heat Exchanger

Light Titanium Heat Exchanger

Heat Exchanger for Evaporator

1.Chemical and corrosion resistant. It can be used for heat exchanger in swimming pool heat pump, SPA and Aquaculture industry etc.

2. With double-flow structure, its heat exchanger efficiency is higher than normal shell-type titanium tube.

3.PVC injection molding to integrated. Its unique structure design combined with integral fusion bonded, making it wider in working range.

  • Details
  • Parameters

Heat exchanger for cooling or heat pump application

Heat exchanger for cooling or heat pump application


Comprehensive spare parts solution

PHNIX has 20 years of experience in heat pump production, and pool heat pump exports have been consistently top. 60% of phnix products are export to the world. So we have mature supply chain which can provide comprehensive spare parts solution for you!

Comprehensive spare parts solution

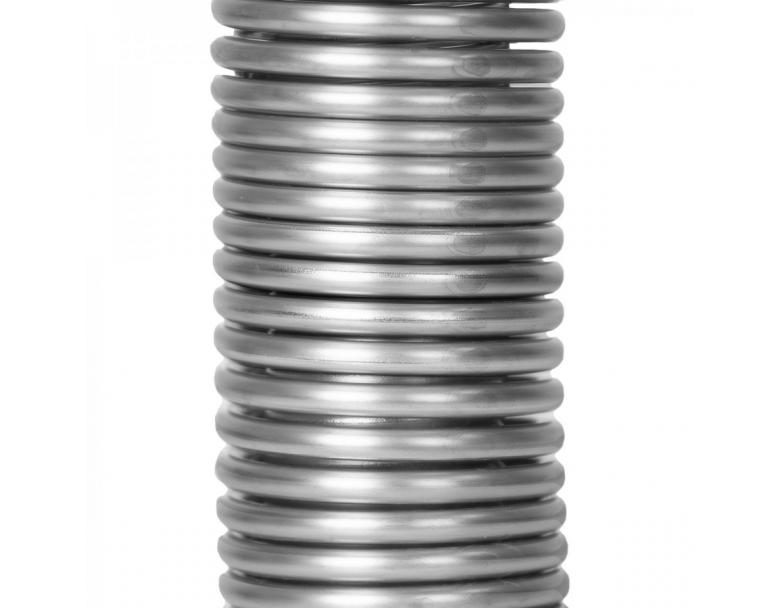

High efficiency heat exchange

Additional insulation cotton to reduce heat loss.

High efficiency heat exchange



Standardized operating procedures, Advanced testing equipment, Ultra-high inspection standards

We have advanced testing equipment like pipe bender robot;copper pipe cutter;AGV and so on. Ultra- high inspection standard that is our finished products have been inspected many times before go out, like Automatic Helium Leak Testing System. Moreover, an advanced MES system is engaged in the management of production, making the production more intelligent and digital.

Standardized operating procedures, Advanced testing equipment, Ultra-high inspection standards


Widely application of the heat exchanger

Generally, It can be used in making swimming pool heat pump for the key parts to finish heat exchange. Aquarium constant temperature, seafood aquaculture heat transfer, chemical industry also will be used.


Widely application of the heat exchanger




Light Titanium Heat Exchanger


Light Titanium Heat Exchanger

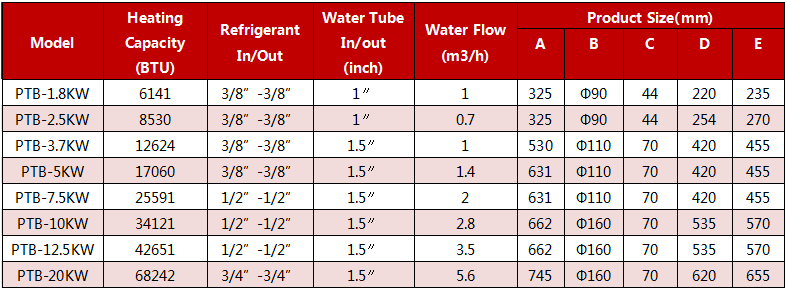

Test condition:The ambient temp. is 35℃, the wet-bulb temp. is 24℃, the inlet water temp. is 12℃ and the outlet water temp. is 7℃.





Scope of Application:

Item

Refrigerate Side (In Ti Threaded Tube)

Water Side (In PVC Shell)

Max. Pressure

5.0MPa (50 Bar)

0.5 MPa (5 Bar)

Temp. Range

-50℃-150℃

1-45℃


Optional Configuration:

No.

Optional Configuration

Model

Option Requirement

Configuration Features

1

Type of Refrigerate Side Connection

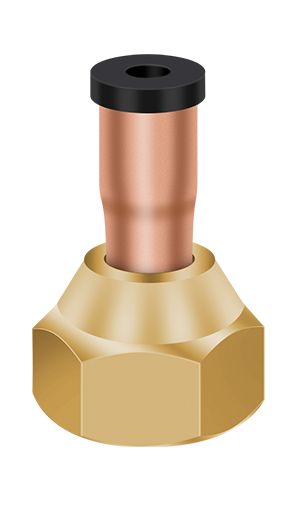

Straight tube

(Standard)

Light Titanium Heat Exchanger

According to product structure

Easy welding

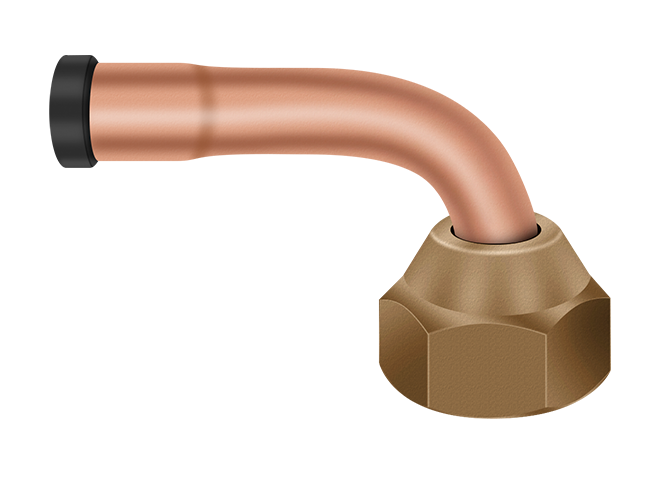

Bending tube

Light Titanium Heat Exchanger

Less Height

2

Type of Water Side Connection

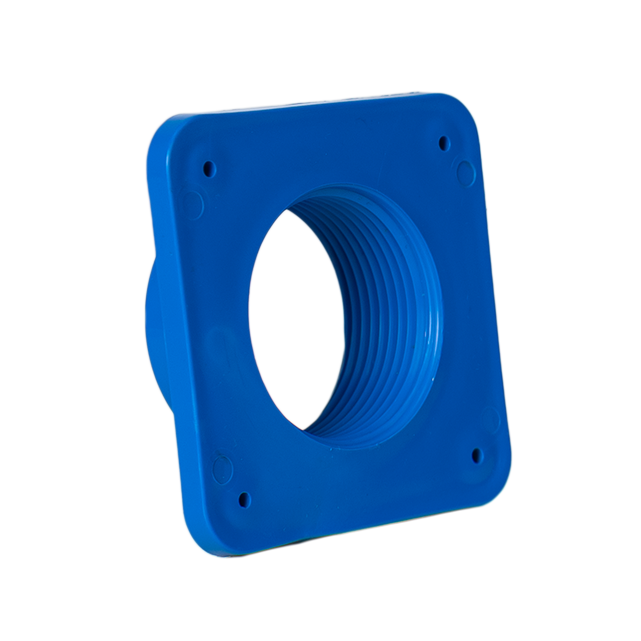

PVC Square base plate

(Standard)

Light Titanium Heat Exchanger

According to product structure

Small size and reliable fixation

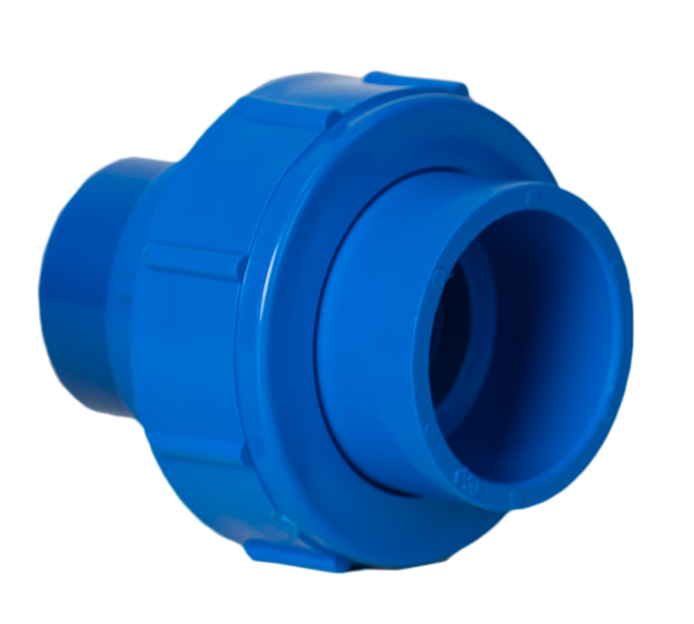

PVC Union

Light Titanium Heat Exchanger

Easy installation

3

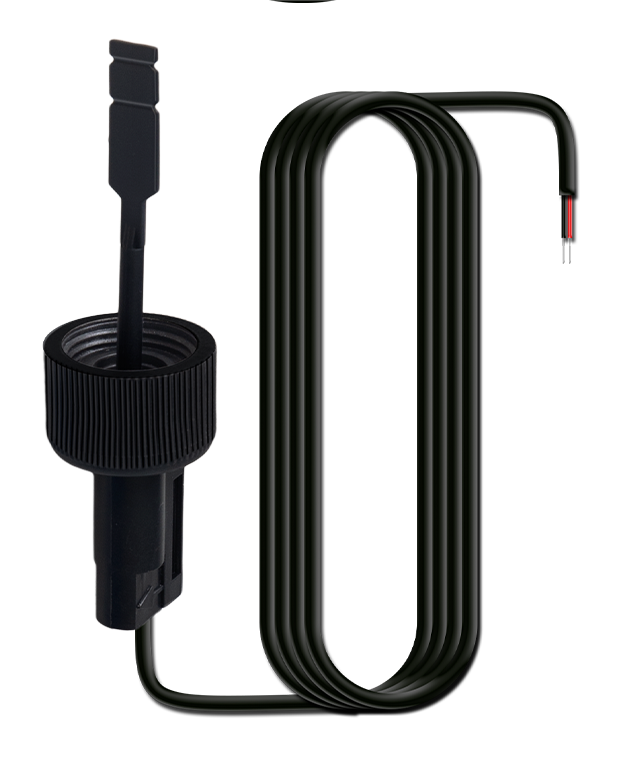

Water Flow Switch

Light Titanium Heat Exchanger

According to pipe diameter and water flow

Mature devices and steady quality

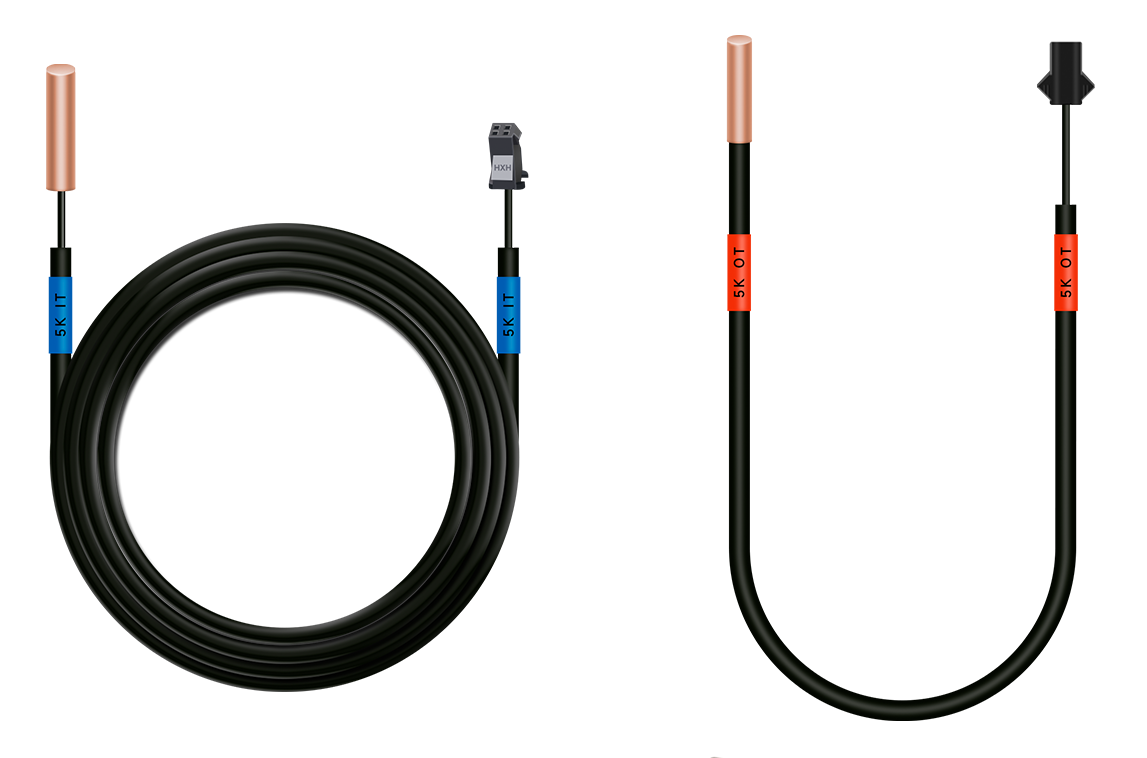

4Thermistor Temperature Sensor

Light Titanium Heat Exchanger

According to product requirement

Mature devices and steady quality

5

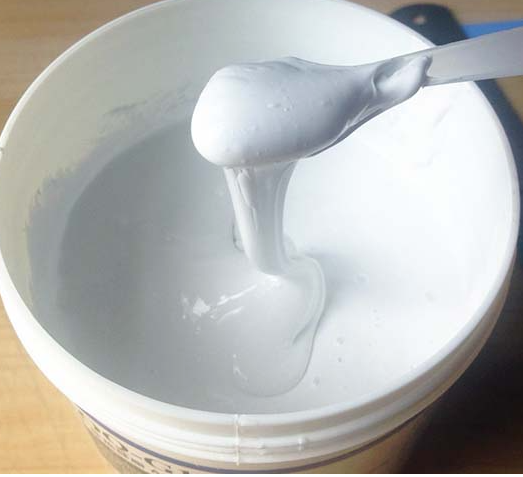

Thermal Grease

Light Titanium Heat Exchanger

According to product requirement

High thermal conductivity
