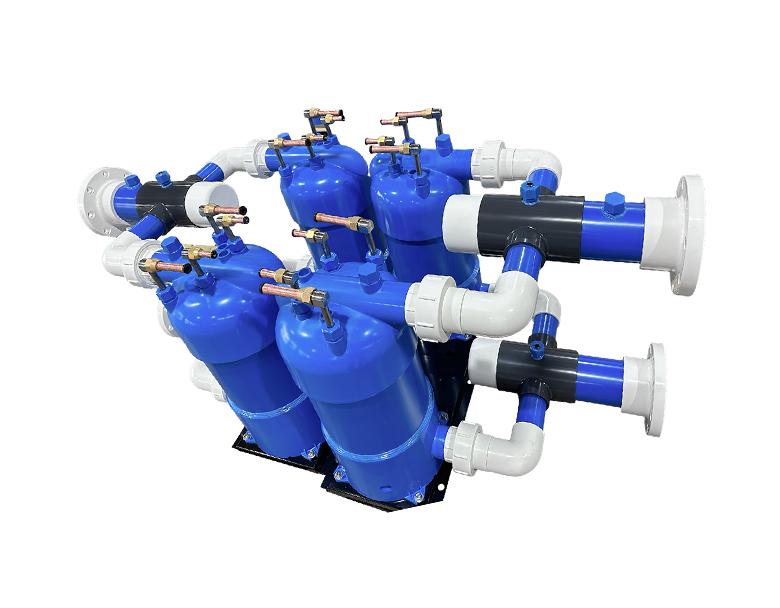

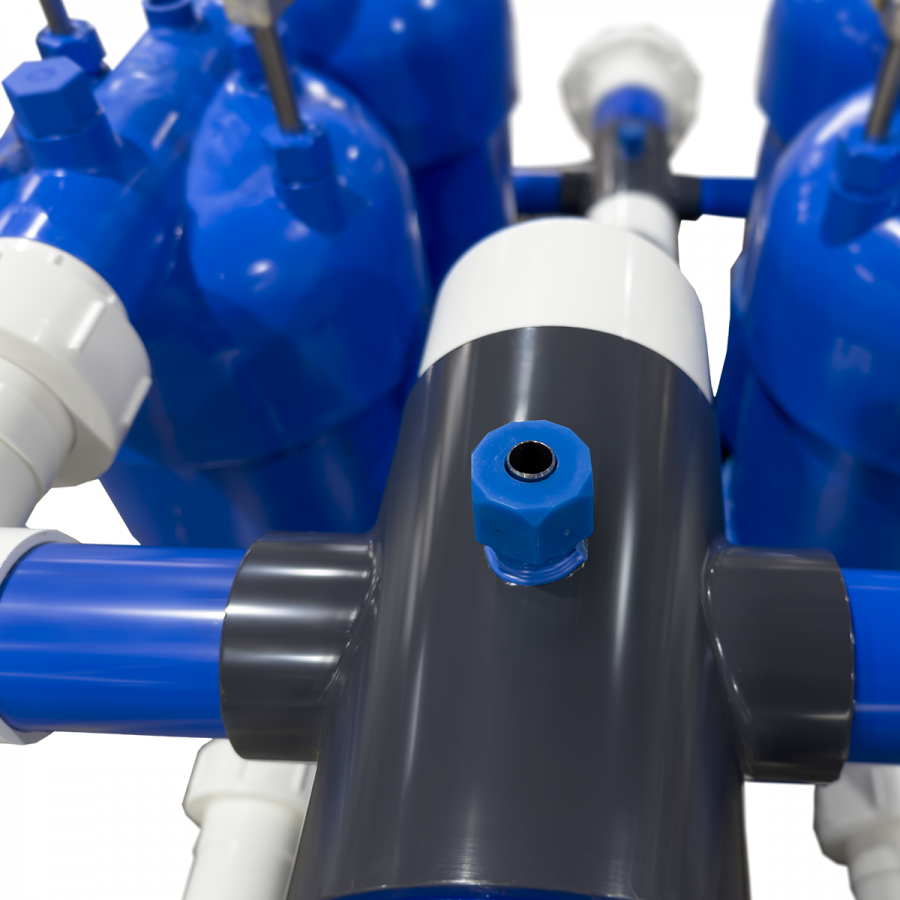

Parallel Combination Heat Exchanger
Parallel Combination Heat Exchanger
Parallel Combination Heat Exchanger
Parallel Combination Heat Exchanger

Parallel Combination Heat Exchanger

1.Corrosion-resistant design. It can be used for heat exchanger in swimming pool heat pump, aquaculture and chemical industry.

2.The unitized design is conductive to energy level management and more convenient for maintenance.

3. Combined structure design. It is more suitable for medium and large unit.

  • Details
  • Parameters

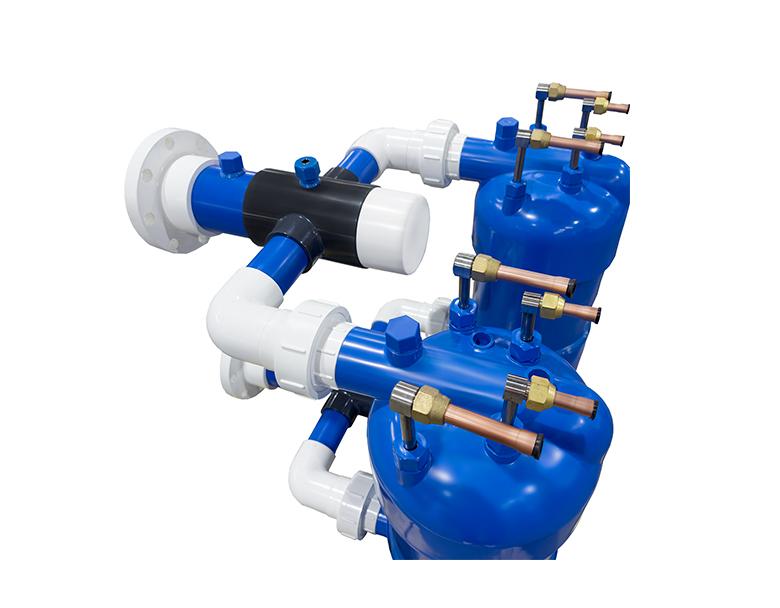

Parallel Struture-Large Heat Pump Used

Parallel Struture-Large Heat Pump Used



Parallel Struture-Large Heat Pump Used



Parallel Struture-Large Heat Pump Used



Parallel Struture-Large Heat Pump Used

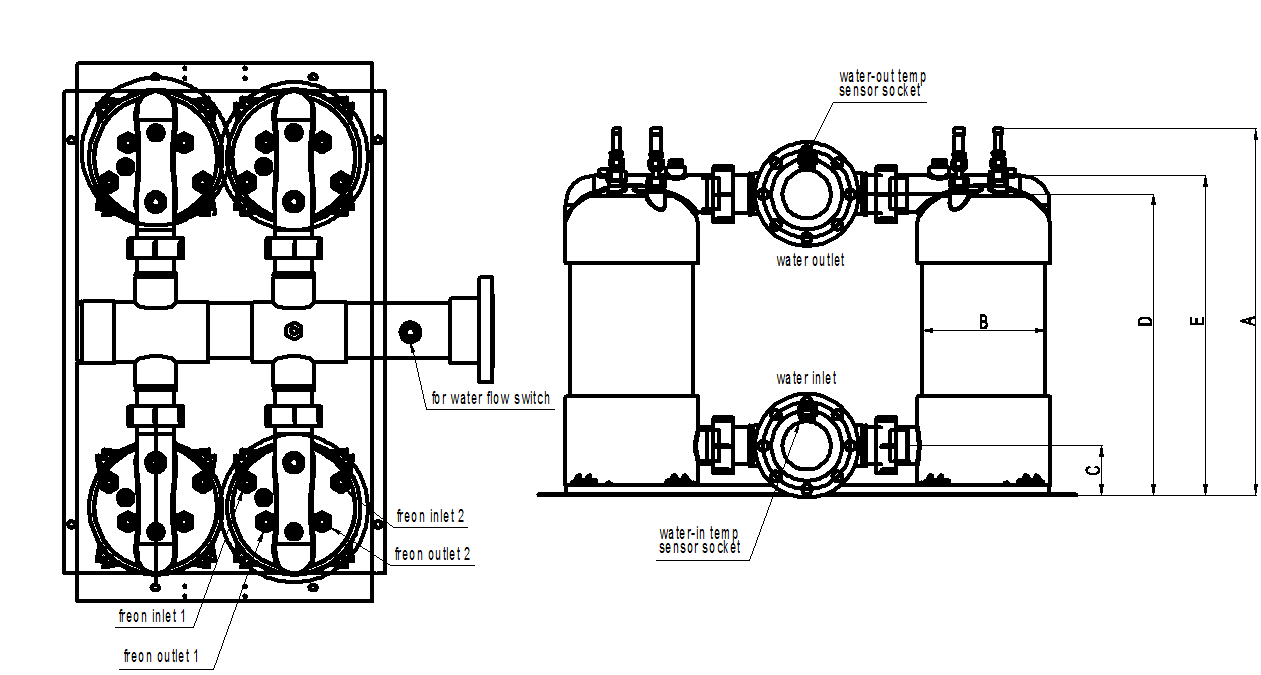

Parallel Combination Heat Exchanger

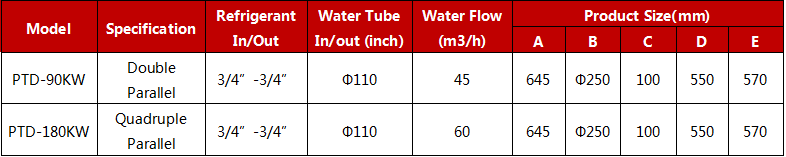

Parallel Combination Heat Exchanger

Test condition:The ambient temp. is 24℃, the wet-bulb temp. is 19℃, the inlet water temp. is 26℃ and the outlet water temp. is 28℃.



Scope of Application:


Item

Refrigerate Side (In Ti Threaded Tube)

Water Side (In PVC Shell)

Max. Pressure

5.0MPa (50 Bar)

0.5MPa (5 Bar)

Temp. Range

-50℃-150℃

1-45℃



Optional Configuration:

No.

Optional Configuration

Model

Option Requirement

Configuration Features
1

Type of Refrigerate Side Connection

Straight tube

(Standard)


Parallel Combination Heat Exchanger


According to the product structure

Easy welding

Bending tube

Parallel Combination Heat Exchanger


Less Height
2

Type of Water Side Connection

PVC Square base plate

(Standard)

Parallel Combination Heat Exchanger


According to the product structure

Small size and reliable fixation

PVC Union

Parallel Combination Heat Exchanger

Easy installation
3

Water Flow Switch

Parallel Combination Heat Exchanger


According to pipe diameter and water flow

Mature devices and steady quality
4

Thermistor Temperature Sensor

Parallel Combination Heat Exchanger


According to product requirement

Mature devices and steady quality
5

Thermal Grease

Parallel Combination Heat Exchanger


According to product requirement

High thermal conductivity
