Introduction

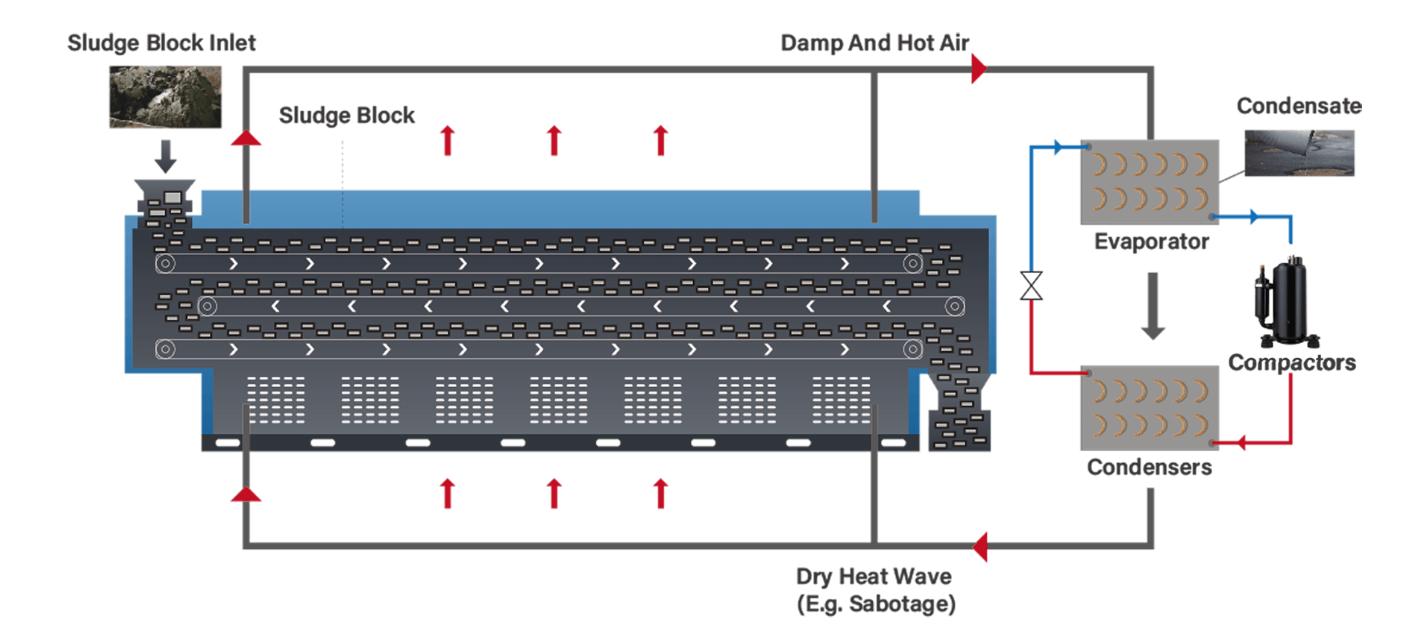

PHNIX's belt-type low-temperature drying technology employs the principle of low-temperature closed-loop dehumidification, using a heat pump as the heat source. It converts the moisture in sludge into humid air, which is then cooled and dehumidified by the heat pump system to achieve material drying.

This technology offers several advantages, including low exhaust temperature, strong drying capacity, high efficiency, and low operating costs. It can reduce the moisture content of sludge from 82% to 10%-60%, achieving over 50% energy savings and an 80% reduction in sludge volume.

As a low-energy, pollution-free drying and volume-reduction technology, it is widely used in the drying and volume-reduction projects of municipal and industrial sludge (such as from textile dyeing, papermaking, electroplating, chemical, leather, and pharmaceutical industries), livestock biogas residues, and animal feed.

Advantages of the process package

· Closed-loop drying with waste heat recovery and no waste heat emission.

· High-efficiency dewatering, with a maximum dewatering rate of 80%, and adjustable final moisture content ranging from 10% to 50%.

· Reduction of moisture content in wet materials from 80% to 30%, with dewatering energy consumption of 320 kWh/ton.

· Low drying temperature (≤85℃) and fully enclosed system, ensuring no odor emissions.

· Fully automatic operation, supporting remote centralized control and intelligent operation.

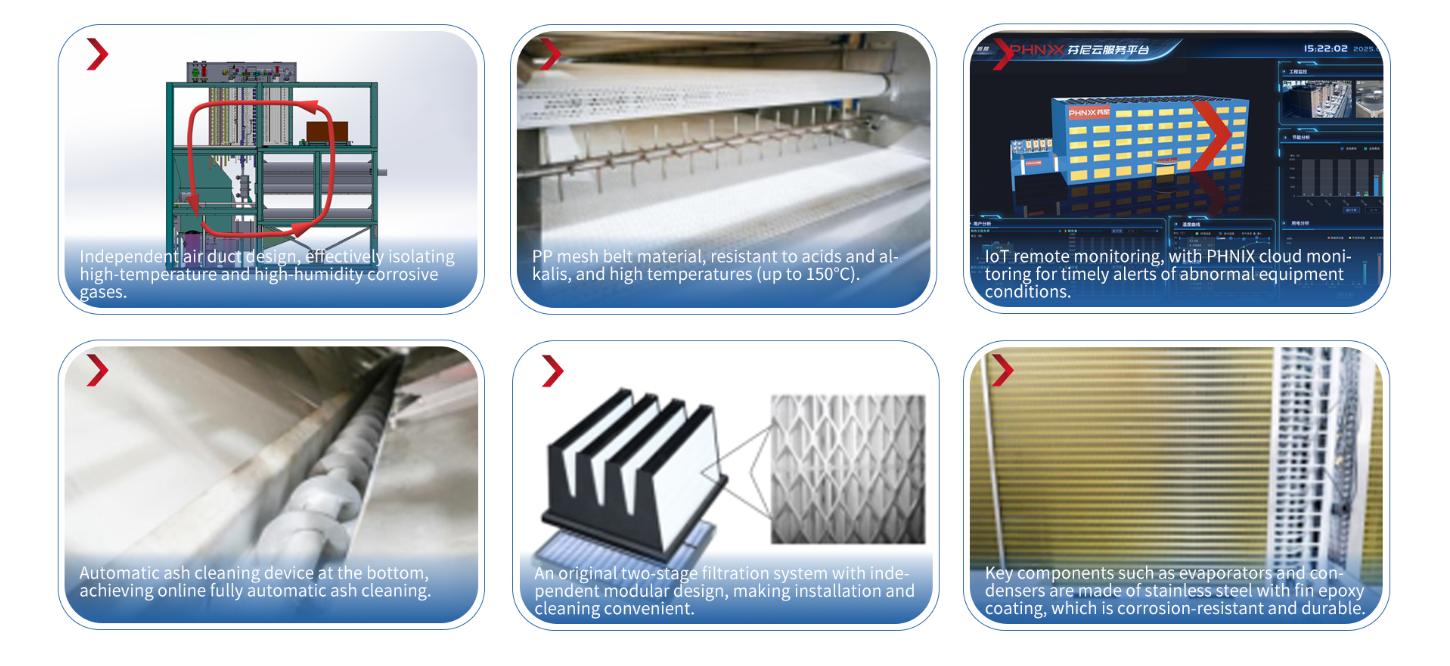

Product Advantages

· Independent air duct design, effectively isolating high-temperature and high-humidity corrosive gases.

· PP mesh belt material, resistant to acids and alkalis, and high temperatures (up to 150°C).

· Key components such as evaporators and condensers are made of stainless steel with fin epoxy coating, which is corrosion-resistant and durable.

· Automatic ash cleaning device at the bottom, achieving online fully automatic ash cleaning.

· An original two-stage filtration system with independent modular design, making installation and cleaning convenient.

· IoT remote monitoring, with PHNIX cloud monitoring for timely alerts of abnormal equipment conditions.

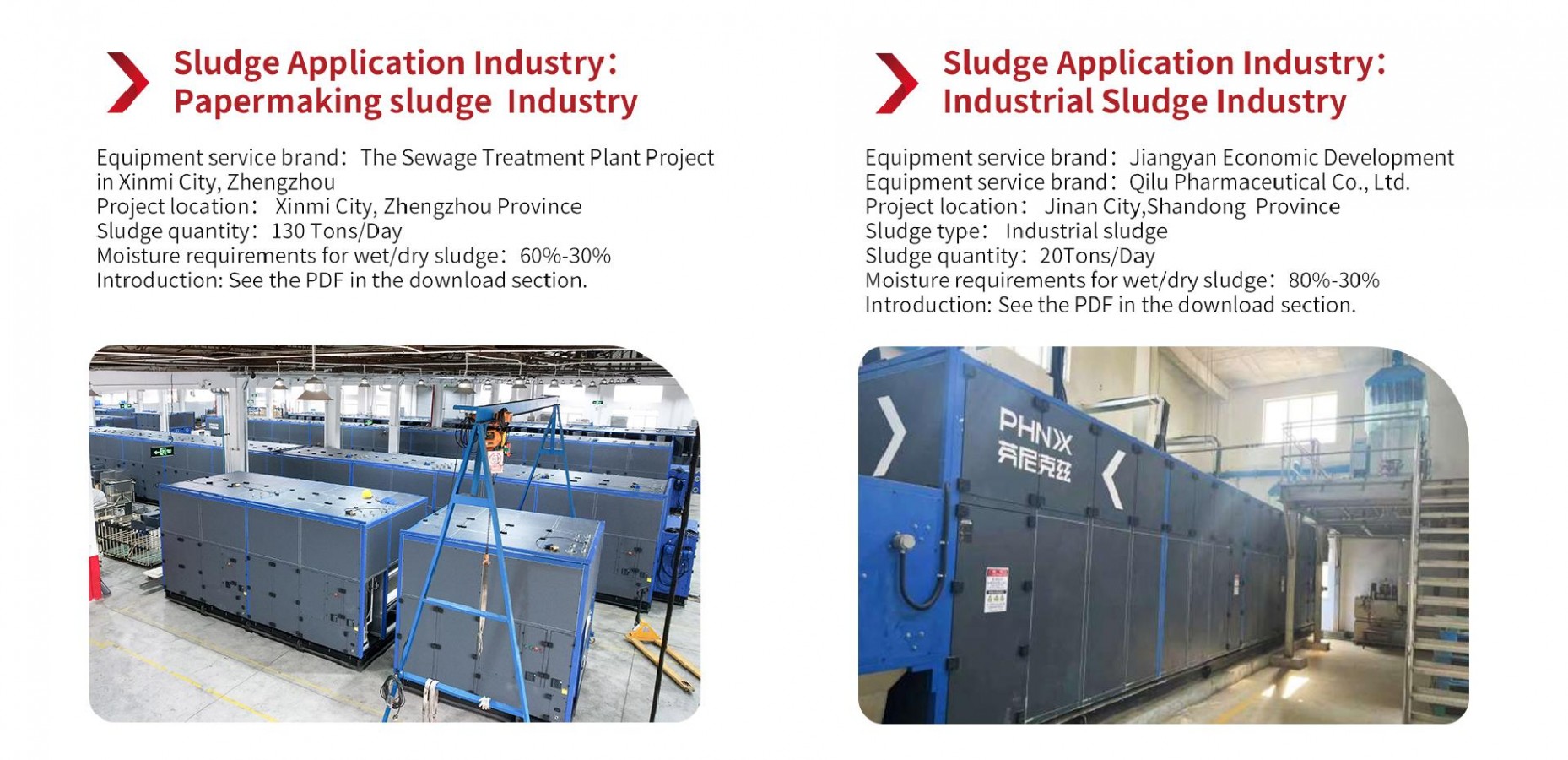

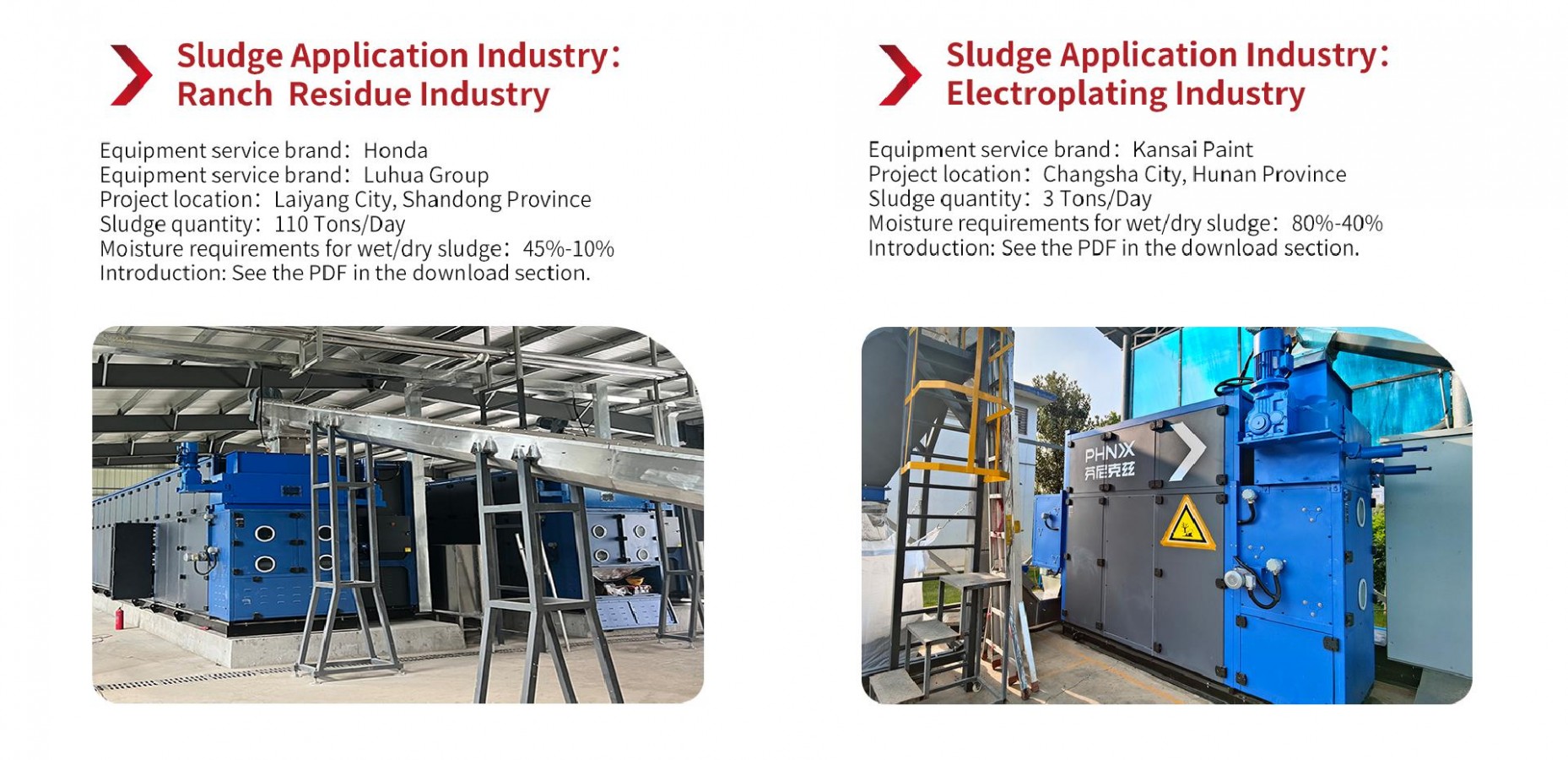

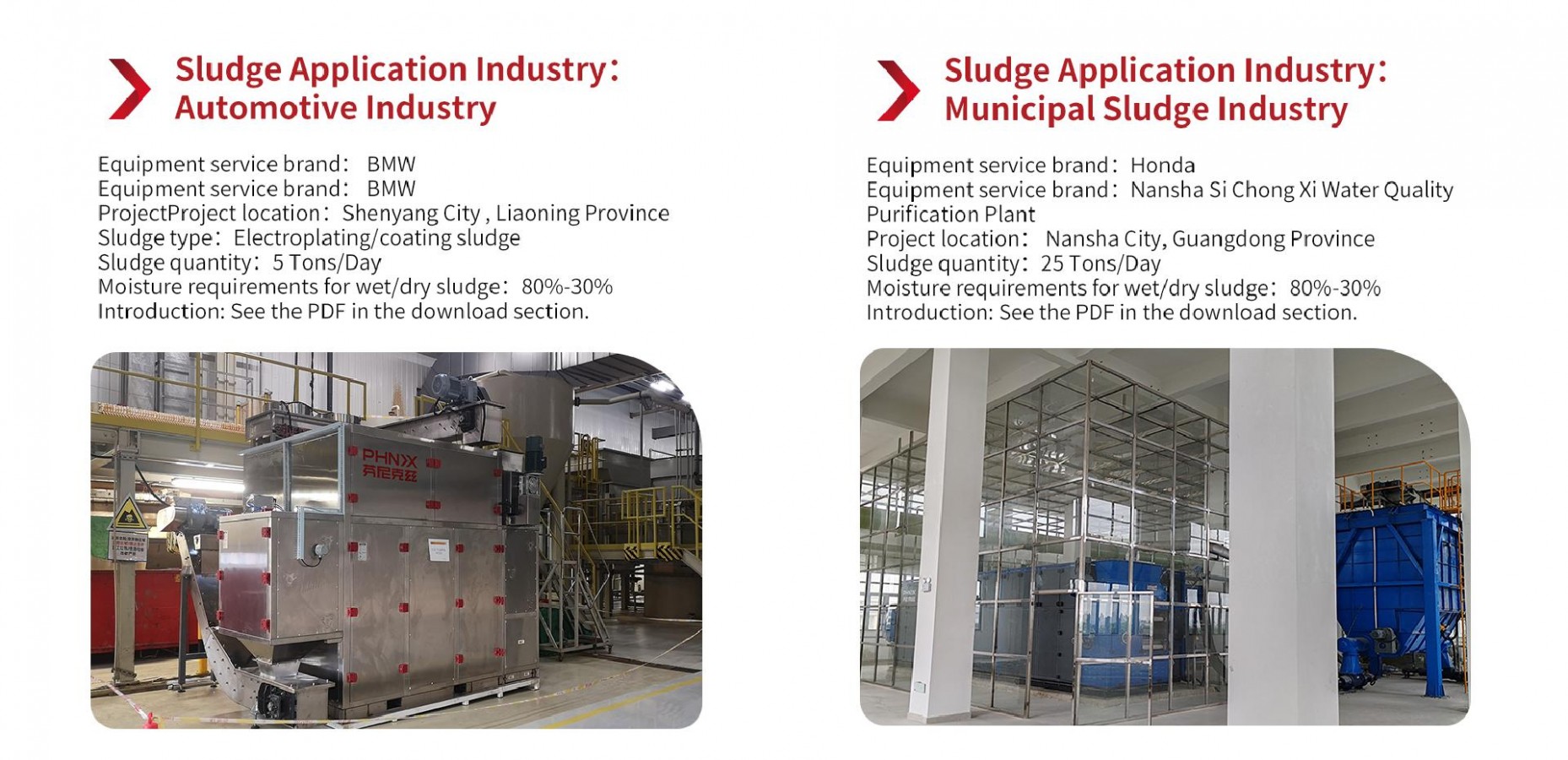

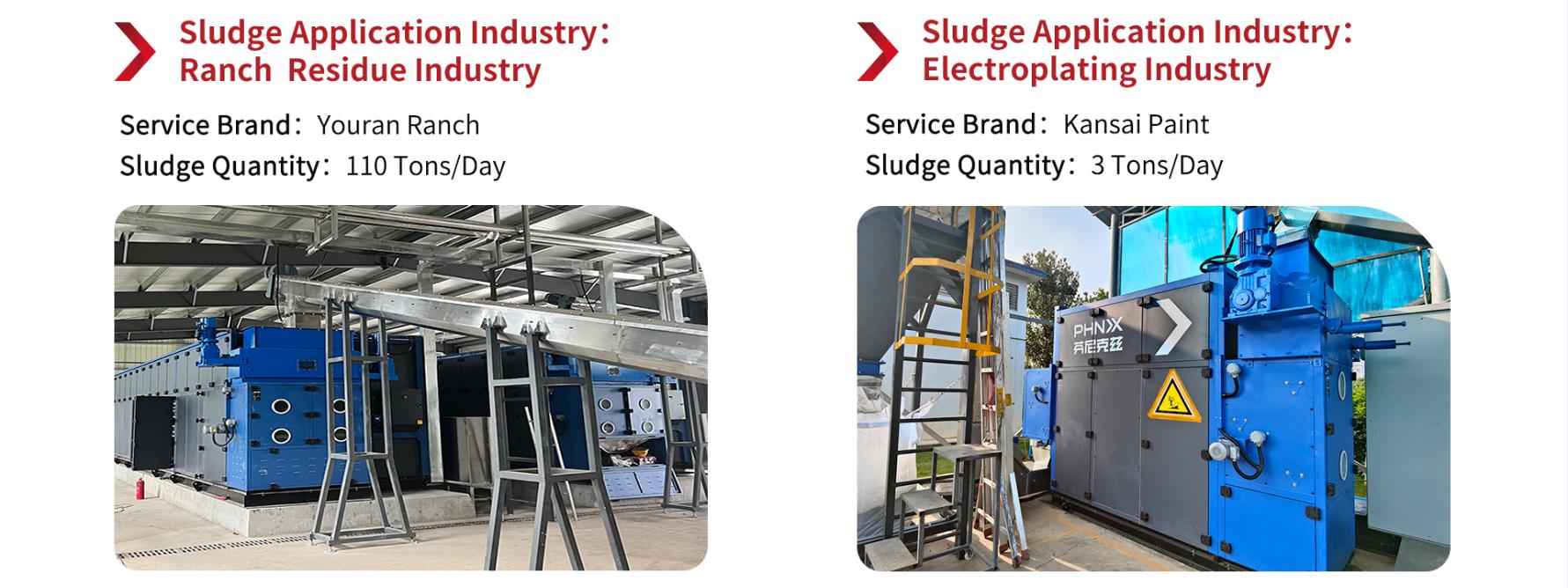

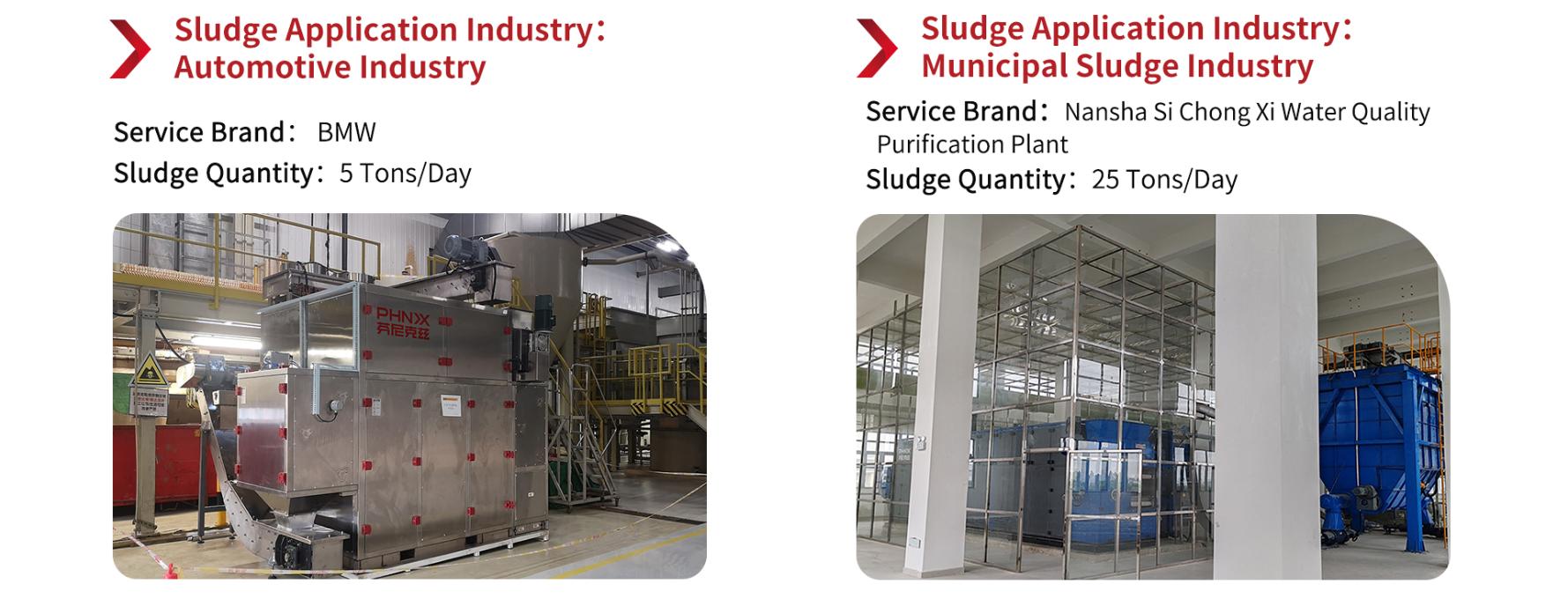

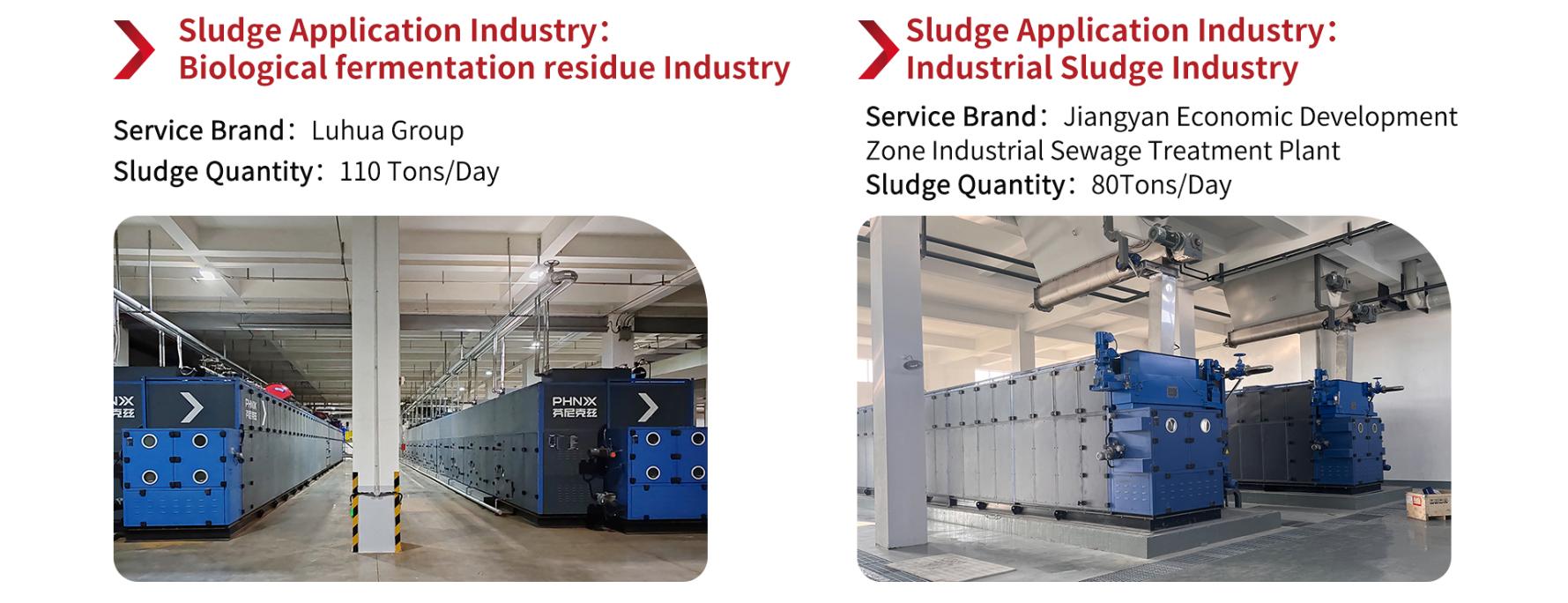

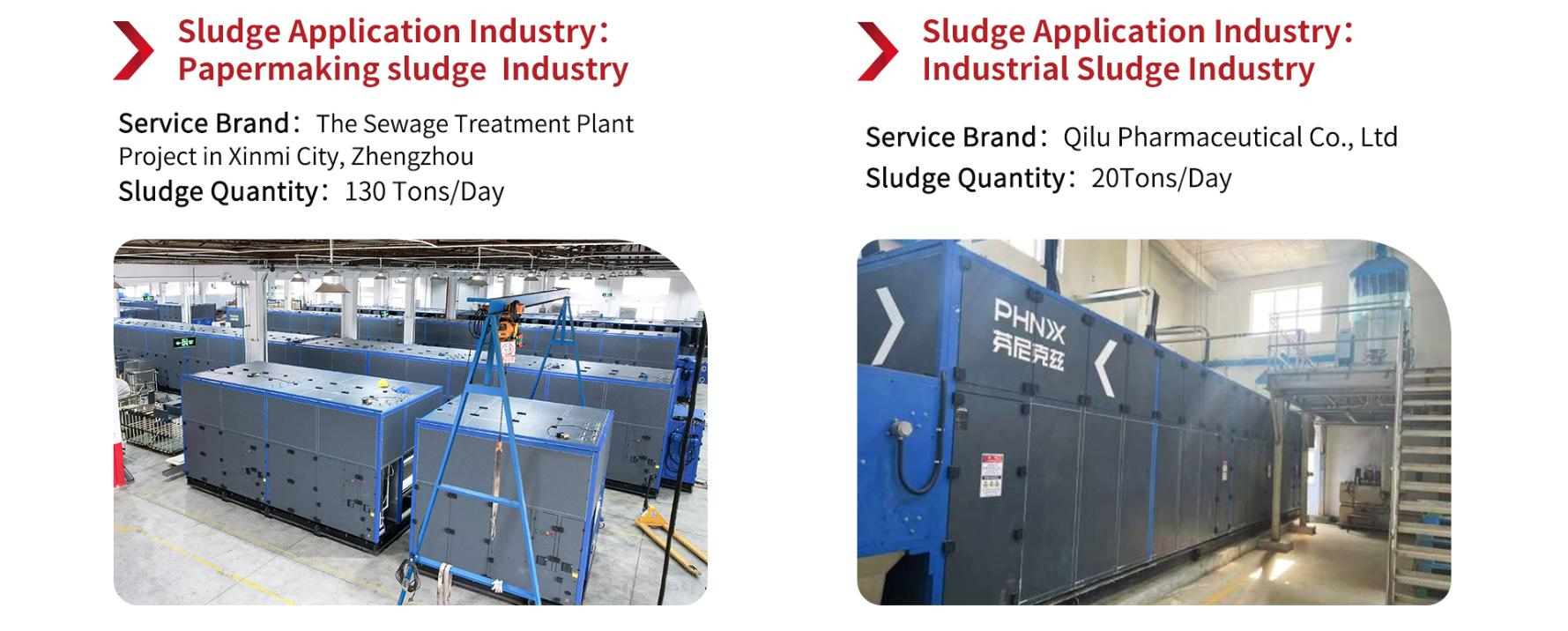

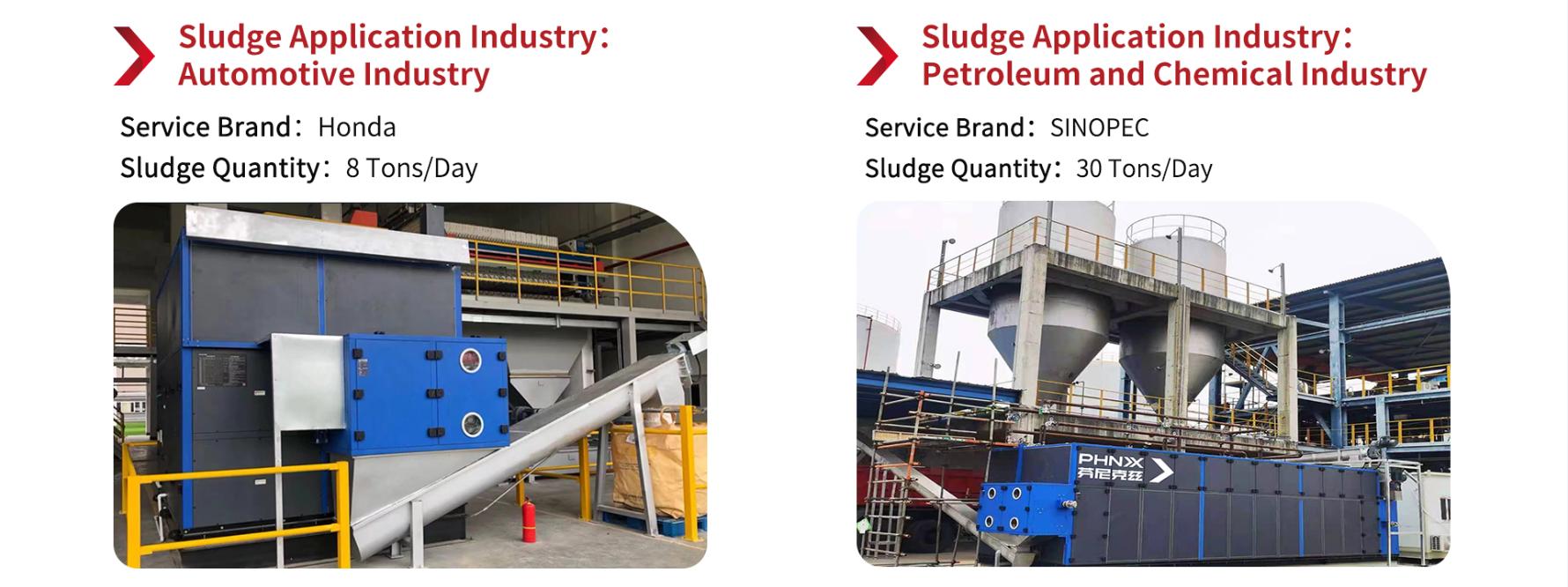

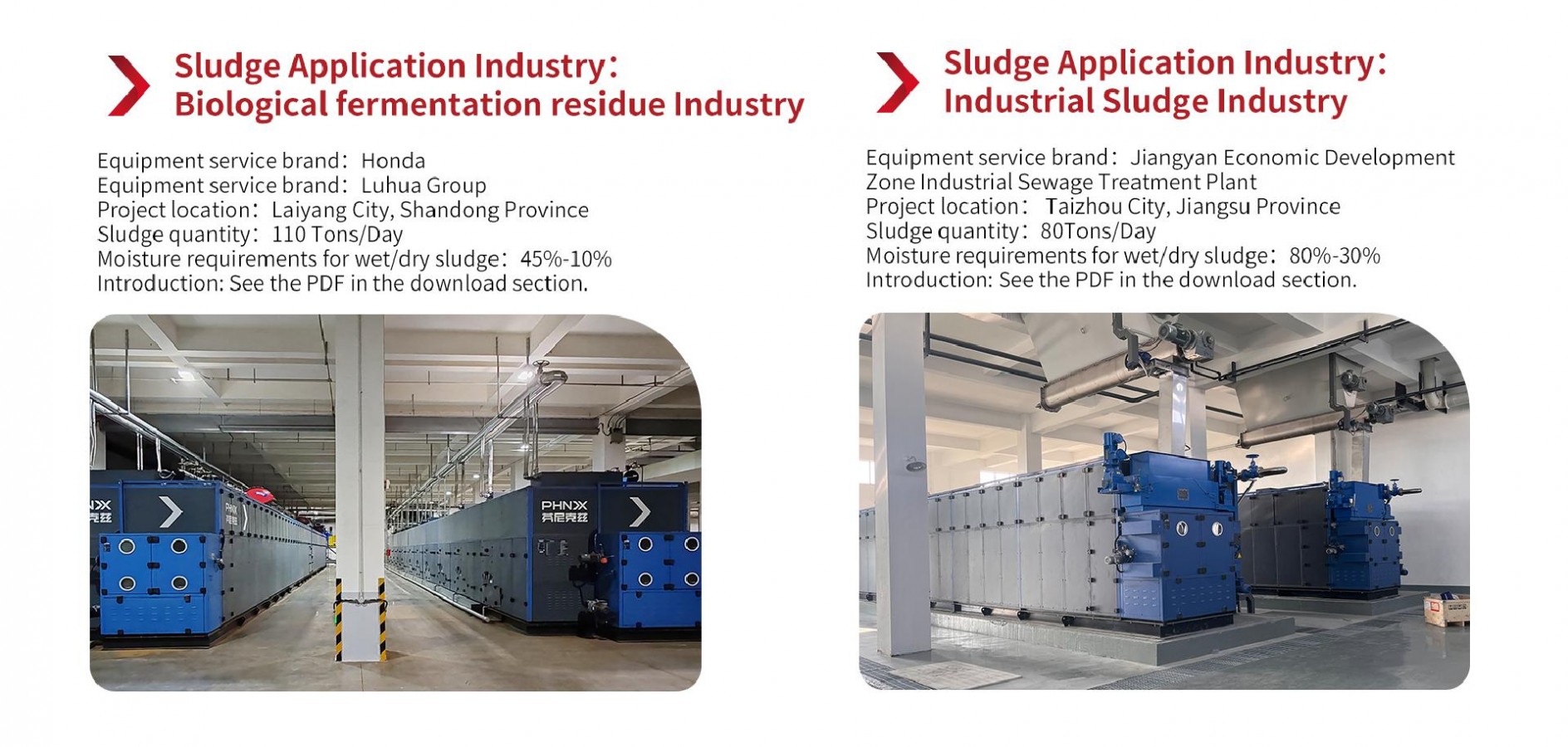

Project Case
