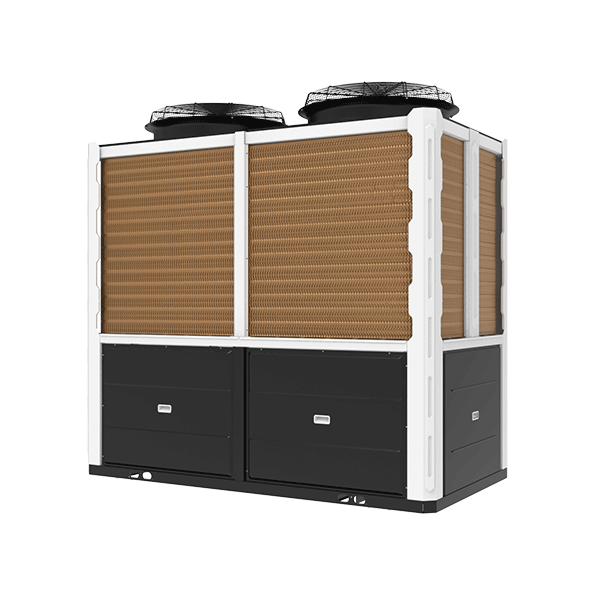

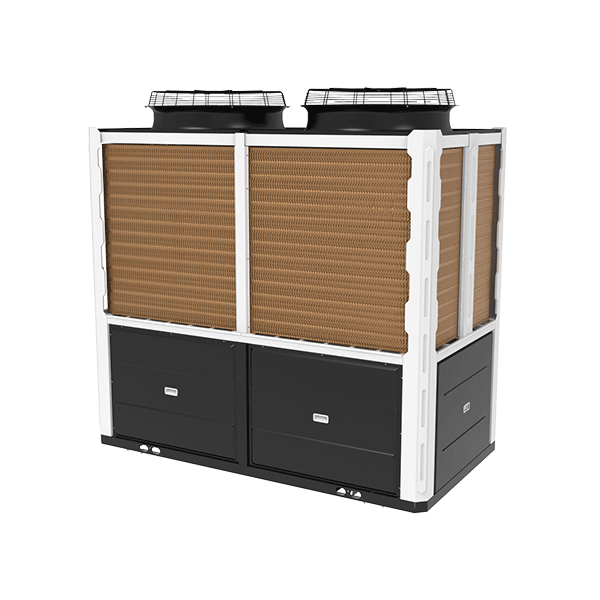

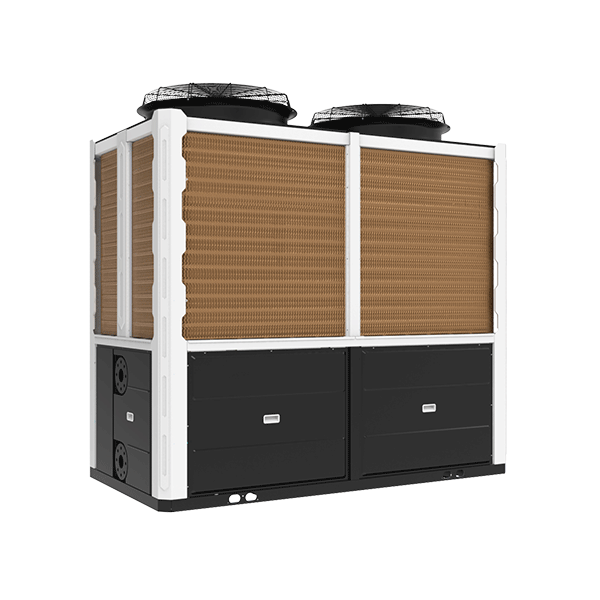

i-MegaLine E

Swimming Pool Heat Pump

PHNIX i-MegaLine E is an R32 inverter commercial pool heat pump developed for hotels, resorts, aquatic centres and other large-scale pool projects. Intelligent multi-unit coordination, connected project management and flexible configurations allow the system to respond efficiently as demand changes, giving brands, distributors and engineering partners a more competitive solution for high-value commercial pool projects.

Inquiry

Product Details

R32 Refrigerant

A widely adopted refrigerant for efficient and reliable commercial pool operation.
Project-Level Energy Savings

15–25% energy savings through intelligent centralised control.
High-Efficiency Operation

COP of 10–14 with optimised unit staging and frequency control.
Wide Operating Range

Reliable operation from -15°C to 43°C.
Smart Project Management

Access energy-consumption data and fault records through Aqua Temp app, Wi-Fi and DTU connectivity.

Commercial Inverter Technology

i-MegaLine E automatically adjusts compressor and fan speed to the real-time heating or cooling demand of the pool. It delivers higher output when demand rises and operates at lower speed under partial load, supporting stable water temperatures with less unnecessary energy consumption.
Centralised Multi-Unit Control

Standard Modbus communication and RS485 connectivity allow multiple i-MegaLine E heat pumps to operate within one centralised control system. Coordinated commands and system-level management make it easier to match total output to changing project demand.
Data Detection & Analysis

Wi-Fi or DTU module connectivity provide access to operating data beyond the equipment room. Through AQUA TEMP app and web plarform management, operators and service teams can review power consumption statistics and fault records for more informed daily management and faster service response.
Project-Ready Customisation

i-MegaLine E can be configured with optional frame materials, centralised drainage, crankcase heaters and pan heaters. These project-oriented options help partners adapt the system to different installation environments, climates and engineering requirements.

Product parameters

	i-MegaLine-E (R32)	PASRW150S-P-BP	PASRW250S-P-BP	PASRW300S-P-BP
Operating air temperature (℃)		-15~43
Refrigerant		R32
Performance (Heating)
Air 27℃/Water 26℃ /Humid. 80%	Heating Capacity(kW)	15~78	24~126	30~155
	Consumed power (kW)	0.91~12.75	1.45~18.33	1.88~22.13
	COP	6.1~16.5	6.0~15.5	6.1~15.9
Air 15℃/Water 26℃ /Humid. 70%	Heating Capacity(kW)	11~57	16.7~86	22~115
	Consumed power (kW)	1.47~12.45	2.23~19.2	2.93~25.3
	COP	4.5~7.5	4.5~7.5	4.5~7.5
Performance (Cooling)
Air 35℃/Water 30℃ /Humid. 40%	Cooling Capacity(kW)	28	62	78
	Consumed power (kW)	11.2	21.4	25
	COP	2.50	2.80	3.10
Technical data
Power Supply		380-415V~/3Ph~
Fan Quantity		1	2	2
Fan Speed (RPM)		500-700	500-700	500-700
Sound Pressure 1m dB(A)		58-63	59-64	59-64
Sound Pressure in silence mode 1m dB(A)		41	42	42
Water Connection (mm)		63	110	110
Water Flow Volume (m3/h)		20-27	40-54	40-54
Water Pressure Drop (max) kPa		15	30	30
Net Dimensions L/W/H （mm） R32		1195×980×1900	2260×1150×2130	2260×1150×2130
