WaterFlow Switches
WaterFlow Switches

WaterFlow Switches

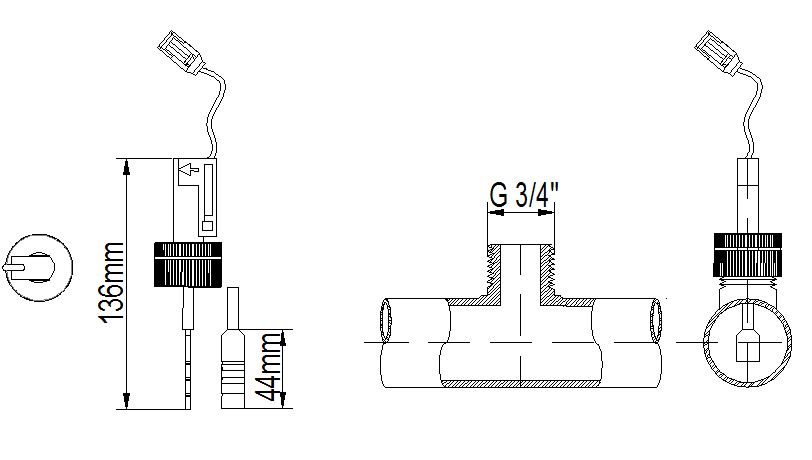

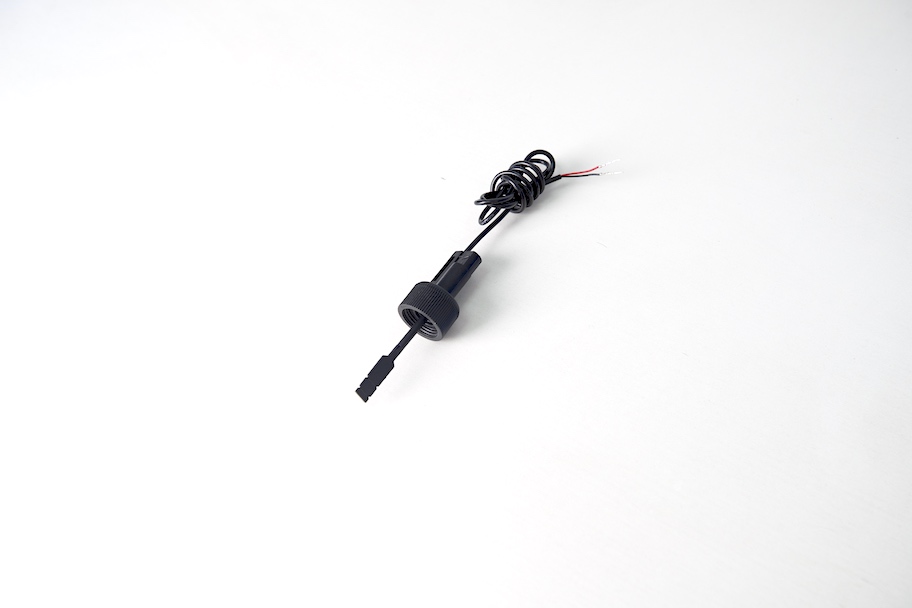

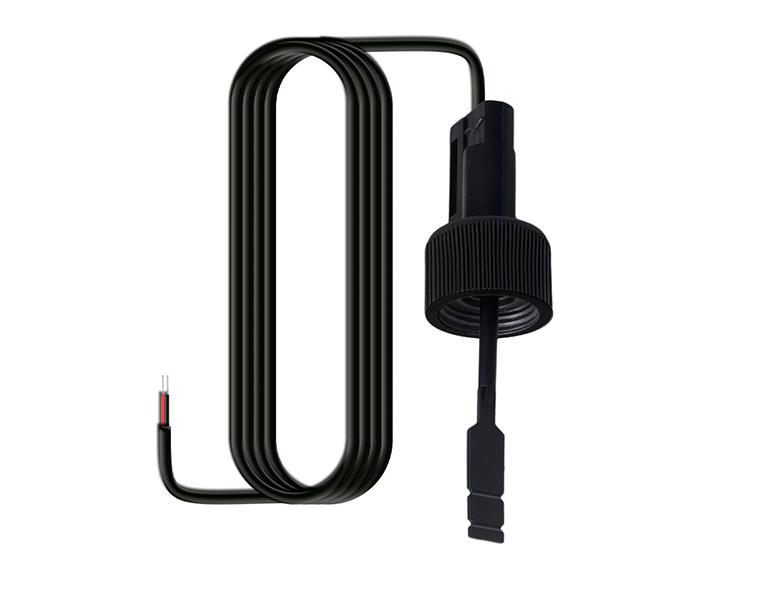

3/4'' Female Thread Plastic Water Paddle Flow Switch

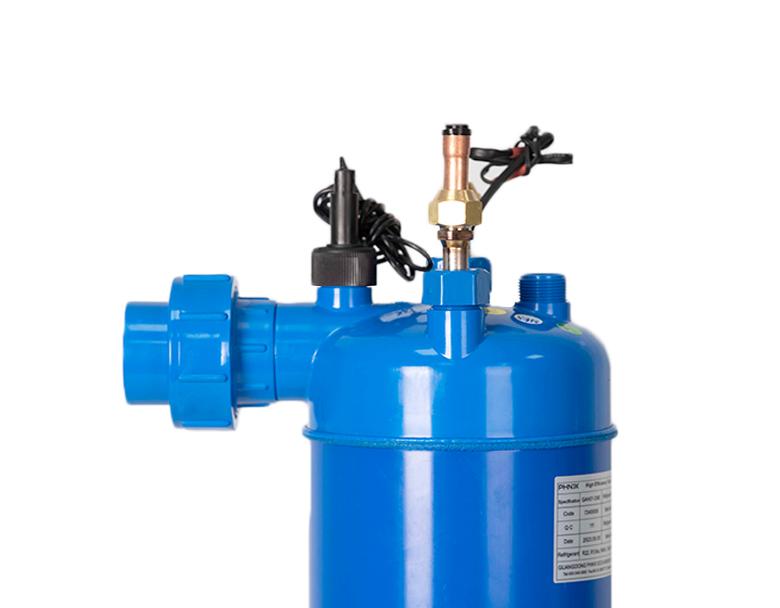

Waterflow Switches on Heat Exchanger Used for Swimming Pool Heat Pump

1.Corrosion-resistant design, suitable for water flow monitoring and protection of swimming pool heat pumps, house heating heat pumps, seafood aquaculture equipment, etc.

2.Unique structural design, high reliability, easy installation

  • Details
  • Parameters

Widely application

It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

Safety device

The water flow switch is composed of a magnetic core, a rotating impeller, a housing and a sensor. When the water flow through the sensor activates the magnetic core to form a touch action, there will be sense this movement and feeds the information back to the electronic control. To make sure that the burner are not able to switch on whilst the system is dry or low on water. So flow switch acts as a safety device.

Safety device


WaterFlow Switches



Model

Specification

Code

Max Switching Voltage (V)

Max Switching

Electric current (A)

Flow Action Point - Decreasing (L/min)

Tube Outer Diameter (mm)

No Water

Circuit Status

PSL-1

Normal Temp. Type

20000-360005

DC300V/AC250V

0.5

8-34

肖28-肖110

Disconnected

PSL-3

Normal Temp. Type

20000-360263

DC300V/AC250V

0.5

16-70

肖28-肖110

Disconnected

PSL-1-L

Low Temp. Type

83000407

DC300V/AC250V

0.5

8-34

肖28-肖110

Disconnected

PSL-3-L

Low Temp. Type

83000303

DC300V/AC250V

0.5

16-70

肖28-肖110

Disconnected

Normal Temp. Type: Working Ambient Temp. 0-50鈩, Low Temp. Type: Working Ambient Temp. -20鈩冿綖50鈩
