GreenTherm Plus

Heating & Cooling Heat Pump

PHNIX GreenTherm Plus Series is an AI-powered R290 residential air-to-water heat pump for house heating, cooling and domestic hot water. It combines efficient everyday performance with AI-driven control, quiet operation and service-friendly design, making it a competitive choice for mainstream new-build and home renovation projects.

Inquiry

Product Details

Natural R290 Refrigerant

A lower-impact refrigerant solution for future-ready residential heating.
High Energy Efficiency

A+++ energy efficiency at both 35°C and 55°C, with a SCOP of up to 5.1.
Year-Round Performance

Stable operation from -25°C to 45°C for dependable winter comfort.
Outlet Water Temperature Up to 75°C

Greater flexibility for underfloor heating, radiators and domestic hot water.
Quiet Operation

Sound pressure as low as 35 dB(A) at 1 m.
Multilingual Smart Control

Srandard display is available in 13 languages. And the optional display is available in 16 languages with integrated room temperature and humidity.
AI Smart Assistant

NIKIGPT supports device control, product guidance and preliminary troubleshooting.
Professional AIoT Management

Centralised fleet, operating and service management through the PHNIX AIoT platform and GoHeating Pro.

AI Intelligent Control

AI Full Inverter Technology

Built on operating data from more than 25,000 installed heat pumps, PHNIX AI Full Inverter Technology adjusts compressor frequency and expansion-valve control to match real-time demand more precisely. Dynamic-tariff adaptation and intelligent scheduling further reduce unnecessary operation, delivering more than 30% energy savings while maintaining stable indoor comfort.
AI Smart Defrosting

Conventional defrosting can interrupt warmth and consume energy even when it is not needed. GreenTherm Plus monitors ambient temperature, humidity and actual frost conditions to determine the right time to defrost. Fewer unnecessary defrost cycles mean more consistent winter comfort, lower energy consumption and reliable operation in freezing weather.
Built-In R290 Safety

GreenTherm Plus combines an integrated gas separator with a potted control board and optional high-precision R290 leak detection. The gas separator captures and vents gas and microbubbles from the water circuit, while the protected PCB helps resist moisture, insects and corrosion. Together, these safeguards support safer indoor heating integration and more dependable long-term operation.

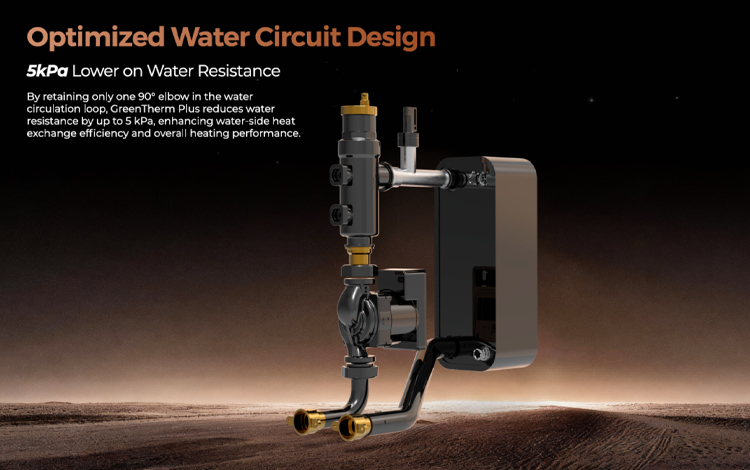

Designed for Easier Installation & Service

An optimised water circuit reduces water resistance by up to 5 kPa, supporting smoother circulation and more efficient heat exchange. Convenient side access makes terminal wiring and PCB replacement easier, while the potted control board protects critical electronics against moisture, insects, corrosion and short circuits. This practical structure helps reduce installation complexity and simplify service throughout the product lifecycle.

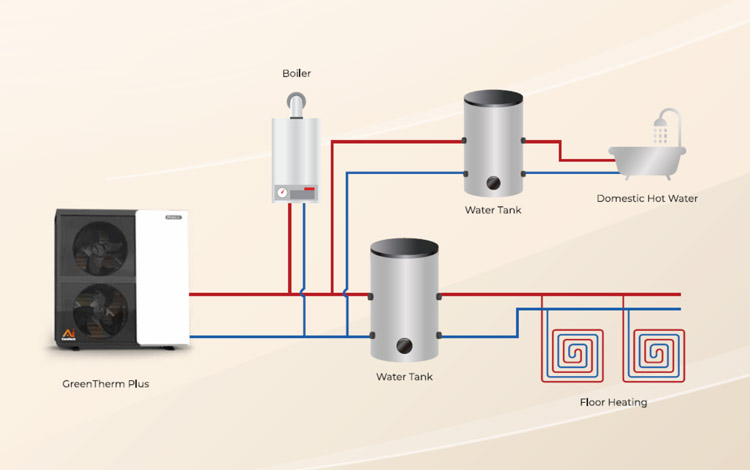

Hybrid Energy Integration

Ready to work with photovoltaic systems, dynamic electricity tariffs and new or existing boilers.

Product parameters

Model	/	L15	L20	L30	L30S	L40	L40S	L50	L50S	L60	L60S	L80S
Power Supply	/	220-240V~/50Hz	220-240V~/50Hz	220-240V~/50Hz	380~415V/3N~/50Hz	220-240V~/50Hz	380~415V/3N~/50Hz	220-240V~/50Hz	380~415V/3N~/50Hz	220-240V~/50Hz	380~415V/3N~/50Hz	380~415V/3N~/50Hz
Heating Condition - Ambient Temp. (DB/WB): 7/6°C, Water Temp. (In/Out): 30/35°C
Nominal Heating Capacity	kW	4	6	10	9	12	12	14	14	17	17	20
Heating Capacity Range	kW	1.40-6.00	1.40-7.07	4.5-12.0	4.5-12.0	4.5-16.0	4.5-16.0	4.5-17.5	4.5-17.5	4.6-20.0	4.6-20.0	6.7-23.6
Heating Power Input Range	kW	0.25-1.33	0.25-1.60	0.78-2.70	0.78-2.70	0.78-3.76	0.78-3.76	0.78-4.85	0.78-4.85	1.02-5.1	1.02-5.10	1.02-5.97
Heating Condition - Ambient Temp. (DB/WB): 7/6°C, Water Temp. (In/Out): 47/55°C
Nominal Capacity	kW	4	6	9	9	10	10	12	12	15	15	18
Heating Capacity Range	kW	1.30-5.50	1.30-6.50	4.3-12.0	4.3-12.0	4.3-15.0	4.3-15.0	4.3-16.5	4.3-16.5	6.3-19.2	6.3-19.2	6.3-21.6
Heating Power Input Range	kW	0.36-1.72	0.36-2.13	1.2-3.93	1.2-3.93	1.2-5.26	1.2-5.26	1.2-6.00	1.2-6.00	2.1-6.37	2.1-6.37	2.1-7.63
Cooling Condition - Ambient Temp. (DB/WB): 35/24°C, Water Temp. (In/Out): 23/18°C
Nominal Cooling Capacity	kW	4	6	8	8	9.95	9.89	9.95	9.89	11.2	10.9	10.9
Cooling Power Input Range	kW	0.33-2.06	0.33-2.19	0.8-3.90	0.8-3.90	0.8-4.46	0.8-4.46	0.8-5.6	0.8-5.6	1.24-5.01	1.24-5.01	1.24-6.28
Cooling Condition - Ambient Temp. (DB/WB): 35/24°C, Water Temp. (In/Out): 12/7°C
Nominal Cooling Capacity	kW	4	6	8	8	10	10	10	10	11.2	10.9	10.9
Cooling Power Input Range	kW	0.34-1.73	0.34-1.84	1.0-3.15	1.0-3.15	1.0-3.86	1.0-3.86	1.0-4.78	1.0-4.78	1.14-4.50	1.14-4.50	1.14-5.42
Max. Power Input	kW	2.65	3	5.5	5.5	6.3	6.3	6.3	6.3	8.48	8.57	8.57
Max. Current Input	A	11.5	13	23.7	8.7	27	10	27	10	37	12	12
Refrigerant Type	/	R290
Refrigerant Volume	kg	0.28	0.28	0.6	0.6	0.6	0.6	0.6	0.6	0.75	0.75	0.75
Sound Pressure (lm)	dB(A)	39	40	44	44	45	45	46	46	48	48	50
Sound Power Level (EN12102)	dB(A)	49	50	54	54	54	54	55	55	56	56	57
Net Weight	kg	66	66	105	105	105	107	105	107	137	139	139
Unit Dimension(L/W/H)	mm	1000×420×700	1000×420×700	1260×490×922	1260×490×922	1260×490×922	1260×490×922	1260×490×922	1260×490×922	1260×490×1335	1260×490×1335	1260×490×1335
Shipping Dimension(L/W/H)	mm	1040×420×845	1040×420×845	1300×495×1065	1300×495×1065	1300×495×1065	1300×495×1065	1300×495×1065	1300×495×1065	1300×495×1480	1300×495×1480	1300×495×1480
Circulation Pump	/	YES
Operating Ambient Temperature	°C	-25~45
Fan Motor Type	/	DC Fan Motor
Water Connection	inch	1
Rated Water Flow	m³/h	0.69	1.03	1.55	1.55	2.06	2.06	2.41	2.41	2.92	2.92	3.44
Water Pressure Drop @Rated Water Flow	kPa	10	15	25	25	35	35	40	40	53	53	73
Circulation Pump Head @Rated Water Flow	m	5	4.3	6	6	5.5	5.5	5	5	6	6	4
Cabinet Type	/	Sheet Metal
