airMono

Heating & Cooling Heat Pump

PHNIX airMono Series is an R290 indoor monoblock heat pump developed for homes where installing an outdoor unit is difficult or restricted. It provides heating, cooling and domestic hot water from one indoor system, with wall-mounted and floor-standing options for different property layouts. Quiet ducted airflow, integrated hydronic design, built-in refrigerant and water-circuit protection and intelligent connected service make it a flexible solution for apartments, historic homes and renovation projects.

Inquiry

Product Details

Natural R290 Refrigerant

A lower-impact refrigerant solution for future-ready residential heating.
No Outdoor Unit Required

The complete heat pump system is installed indoors for greater project flexibility.
Heating, Cooling & DHW

One indoor system for year-round home comfort and domestic hot water.
Wall-Mounted & Floor-Standing Design

Two installation formats for different property layouts and space requirements.
A+++ Energy Efficiency

SCOP of up to 4.73 for lower year-round energy consumption.
Reliable Operation

Reliable operation from -15°C to 43°C.
Quiet Indoor Operation

Sound pressure level as low as 44 dB(A) at 1 m.
Flexible Airflow Configuration

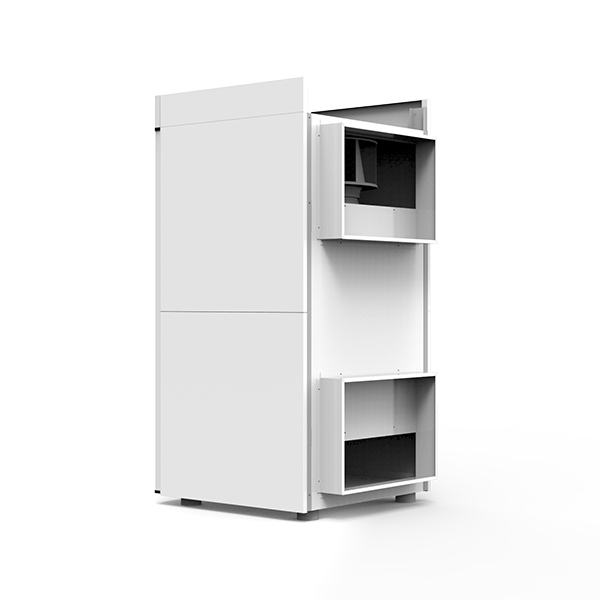

The floor-standing model supports three-sided airflow configuration for easier on-site installation.
Smart Wi-Fi Control

Easy temperature control, scheduling and monitoring through the WarmLink app.
Professional IoT Management

Connected operation and service management through the PHNIX IoT platform.

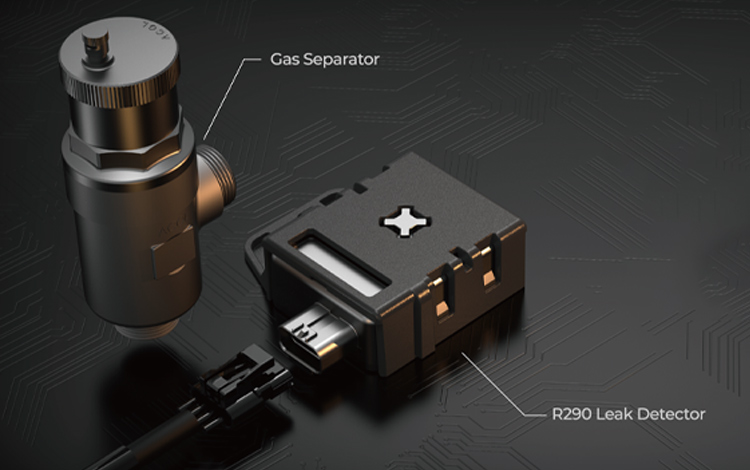

Built-In R290 Protection

airMono combines real-time refrigerant leak detection with a gas separator to strengthen protection across both the refrigerant and water circuits. If an abnormal refrigerant concentration is detected, the system stops operation and activates fan-assisted discharge—giving installers and homeowners greater confidence in indoor applications.

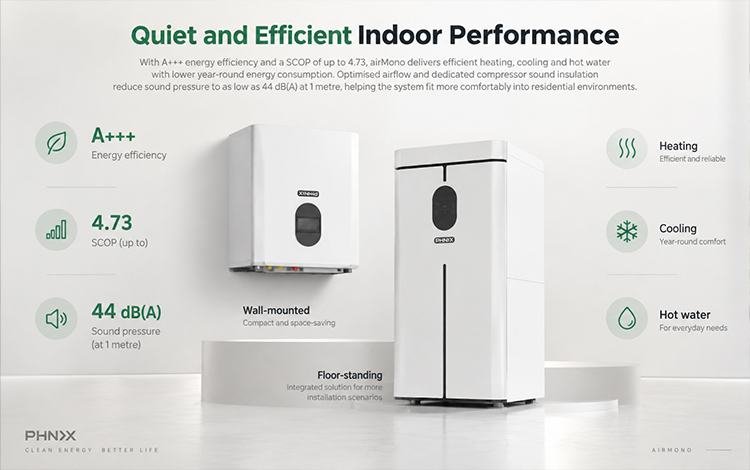

Quiet and Efficient Indoor Performance

With A+++ energy efficiency and a SCOP of up to 4.73, airMono delivers efficient heating, cooling and hot water with lower year-round energy consumption. Optimised airflow and dedicated compressor sound insulation reduce sound pressure to as low as 44 dB(A) at 1 metre, helping the system fit more comfortably into residential environments.

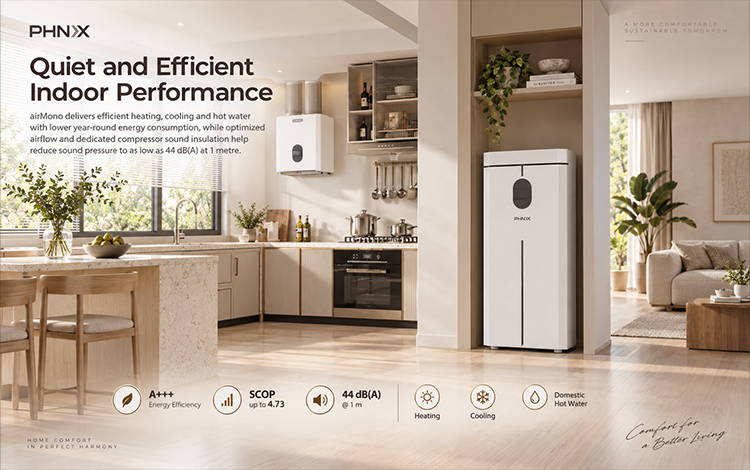

Flexible Indoor Installation

Wall-mounted and floor-standing models allow installers to choose the right configuration for different property layouts. The compact wall-mounted model saves valuable floor space and supports three-sided airflow configuration, while the floor-standing model provides an integrated solution for dedicated indoor utility areas.

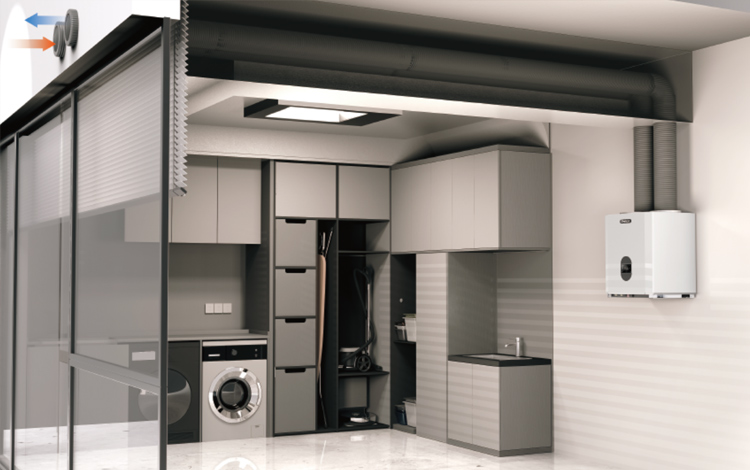

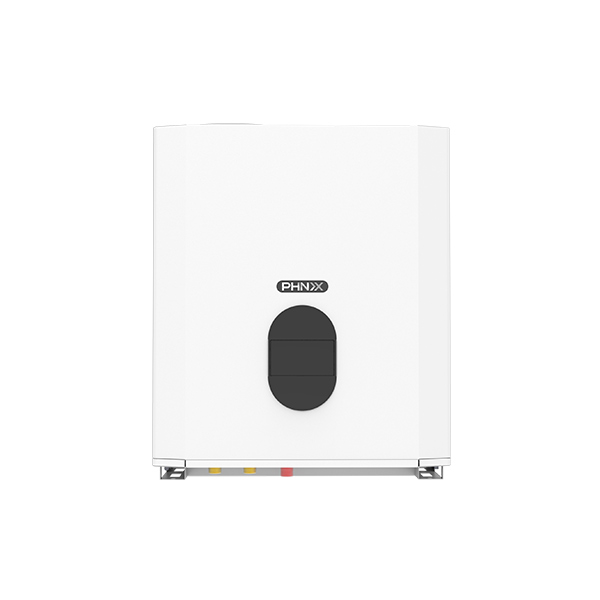

Space-saving Wall-mounted Design

Compact wall-mounted design that saves floor space and is ideal for apartments, renovations and modern residential buildings.

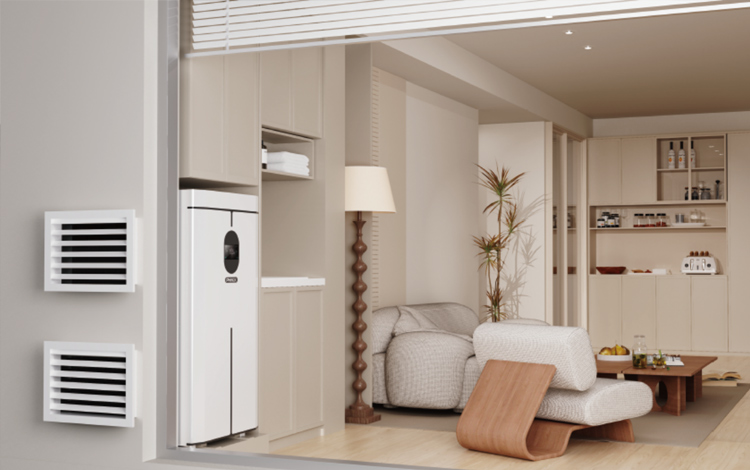

Floor-Standing Design

airMono floor-standing design provides flexible installation options for homes requiring a traditional floor-mounted solution. It is suitable for larger residential buildings, utility rooms and projects with more installation space.

Product parameters

airMono	CC15B	CA20B
Heating capacity	3.2 kW (7/6℃,30/35℃)	4.8 kW (7/6℃,30/35℃)
Heating Power Input/COP	820 W / COP 3.9	1148 W / COP 4.18
SCOP/Energy efficiency class	SCOP 4.5 / A+++	SCOP 4.73 / A+++
Hot water volume rate/Rated Flow Rate	Rated Flow Rate0.55 m³/h	Rated Flow Rate0.82 m³/h
Operation range	-15~43℃	-15~43℃
Water Outlet Temp Range	65℃	65℃
Refrigerant(charge)	R290 (0.45 kg)	R290 (0.49 kg)
Refrigerant GWP/CO2	GWP 3 / 0.00135 t	GWP 3 / 0.00147 t
Gross weight/Net weight	73/85 kg	124/142 kg
Net Dimension	598×495×725 mm	598×615×1200 mm
Shipping Dimension	685×570×840 mm	640×730×1263 mm
Noise(Sound pressure at 1m/sound power level)	44 dB(A)/58 dB	47 dB(A)/61 dB
Power Supply	220-240/50 V	220-240/50 V
Compressor/Fan motor	DC Fan motor/Rotary Compressor	DC Fan motor/Rotary Compressor
Heat Exchanger/ Circulating Pump Head	Plate Heat Exchanger;Circulating Pump Head6 m	Plate Heat Exchanger;Circulating Pump Head 9 m
Other	COP 2.5 at 47/55°C (Input Power: 1,280 W)	COP 2.65 at 47/55°C (Input Power: 1,811 W); IPX0
