Volcano Series
Heating & Cooling Heat Pump
PHNIX Volcano Series is an R454B monoblock air-to-water heat pump developed for residential and light commercial applications in North America. ETL and AHRI certifications, Full DC Inverter EVI technology, cold-climate performance and smart control make it a market-ready solution for year-round heating, cooling and domestic hot water.
Product Details
-
R454B RefrigerantA more climate-conscious refrigerant choice for the evolving North American HVAC market. -
ETL & AHRI CertifiedCertified performance and safety for residential and light commercial applications. -
Heating, Cooling & DHWOne system for year-round indoor comfort and domestic hot water. -
Year-Round PerformanceReliable operation from -22°F to 113°F (-30°C to 45°C). -
Water temperatures up to 149°FGreater flexibility for space heating and domestic hot water applications. -
Full DC Inverter EVI TechnologyVariable-speed technology supports efficient and stable operation across changing conditions. -
Intelligent DefrostingAdapts to cold-weather conditions to maintain more consistent heating performance. -
Electricity Usage DisplayReal-time energy data helps users better understand system operation and consumption. -
Wi-Fi & IoT ConnectivityRemote monitoring and control through the PHNIX IoT platform and WarmLink app.
-
Built for the North American MarketVolcano Series combines ETL and AHRI certifications with R454B refrigerant and North American operating requirements. As the first Chinese R454B heat pump series to receive cETLus approval from Intertek, it gives brands and distributors a strong foundation for expanding into residential and light commercial heating markets. -
Full DC Inverter EVI TechnologyPowered by a Mitsubishi compressor and Full DC Inverter EVI technology, Volcano Series continuously adjusts its output to match real-time demand. It delivers dependable heating in temperatures as low as -22°F (-30°C), while operating more efficiently under partial-load conditions for stable comfort across the seasons. -

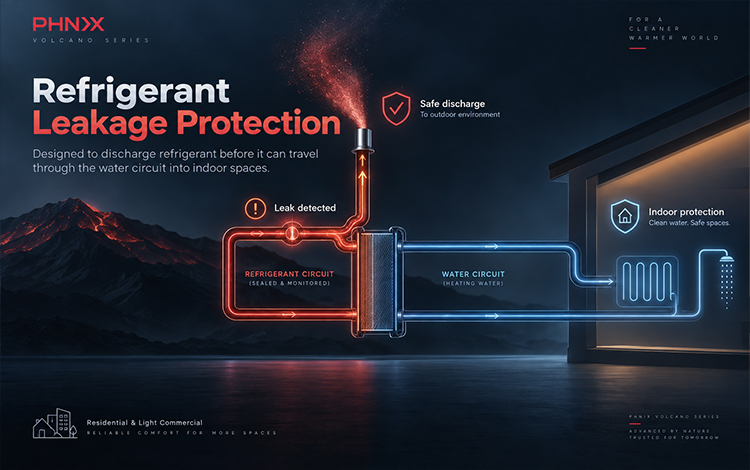

Refrigerant Leakage ProtectionVolcano Series incorporates a dedicated leakage protection design for greater confidence in connected water-based heating systems. If refrigerant leakage occurs, the system is designed to discharge it before it can travel through the water circuit into indoor spaces, adding another layer of protection for residential and light commercial installations. -
Smarter Energy & System ManagementA 5-inch full-colour touchscreen brings system settings, operating status and electricity consumption together in one clear interface. Wi-Fi connectivity, WarmLink app control and the PHNIX IoT platform extend this visibility beyond the equipment, making everyday operation, remote monitoring and service management easier.
Product parameters
| Model | V12 | V18 | |
| Power Supply | / | 208-230V~/60Hz | 208-230V~/60Hz |
| Heating Condition - Ambient Temp. (DB / WB): 47 / 43°F, Water Temp. (In / Out): -/ 120°F | |||
| Nominal Capacity | Btu/h | 41000 | 52800 |
| Heating Capacity Range | Btu/h | 20500~61900 | 22200~75800 |
| Heating Power Input Range | kW | 1.92~5.15 | 1.93~7.14 |
| Heating Condition - Ambient Temp. (DB / WB): 17 / 15°F, Water Temp. (In / Out): -/ 120°F | |||
| Nominal Capacity | Btu/h | 41000 | 52800 |
| Heating Power Input | kW | 4.95 | 6.51 |
| Cooling Condition - Ambient Temp. (DB / WB): 95 / -2°F, Water Temp. (In / Out): -/ 44°F | |||
| Cooling Capacity Range | Btu/h | 15500~47800 | 16100~54600 |
| Cooling Power Input Range | kW | 1.71~4.73 | 1.90~6.46 |
| Technical Specification | |||
| Max. Power Input | kW | 7.1 | 7.5 |
| Max. Current Input | A | 33 | 34 |
| Refrigerant Type | / | R454B | R454B |
| Refrigerant Volume | lb | 5.732 | 6.173 |
| CO₂ Equivalent | Ton | 1.2142 | 1.3076 |
| Sound Pressure (lm) | dB(A) | 43~55 | 45~58 |
| Net Weight | lb | 320 | 375 |
| Unit Dimension(L/W/H) | inch | 50.7 x 18.0 x 36.5 | 49.2 x 21.3 x 52.4 |
| Shipping Dimension(L/W/H) | inch | 55.9 x 21.3 x 42.5 | 54.3 x 24.4 x 58.3 |
| Operating Ambient Temperature | °F | -22~113 | -22~113 |
| Heating Outlet Water Temperature | °F | 59~149 | 59~149 |
| Cooling Outlet Water Temperature | °F | 41~77 | 41~77 |
| Fan Quantity | / | 1 | 2 |
| Fan Motor Type | / | DC Motor | DC Motor |
| Water Connection | NPT | 1 inch | 1 inch |
| Rated Water Flow | gpm | 8.28 | 11.01 |
| Water Pressure Drop @ Rated Water Flow | ft H₂O | 6.69 | 8.36 |
| Cabinet Type | / | Galvanized Sheet+ASA | Galvanized Sheet+ASA |
