stands for the newest optimized technology specific to PHNIX swimming pool heat pump products.

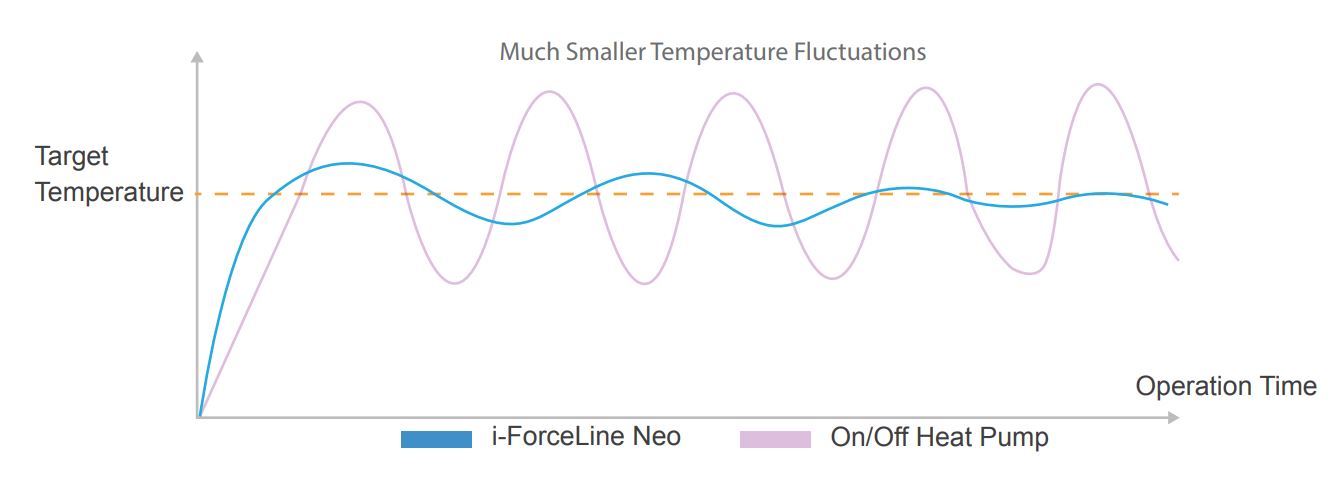

Powered by , the heat pump runs at PHNIX unique inverter technology, maintaining the max stability and greatly reducing the energy consumption during running.
Moreover, heat pump with technology can create an extraordinary quiet swimming environment for users for super low noise it will produce.
Also, heat pump powered by uses the most leading designs both on internal structure and appearance, enabling the unit to run with high efficiency, installed flexibly and perfectly blending with your swimming environment at the same time.

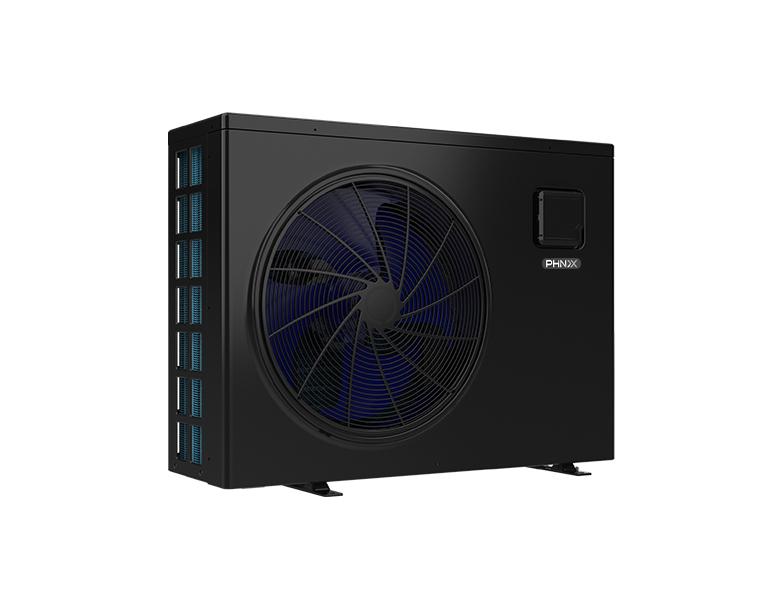

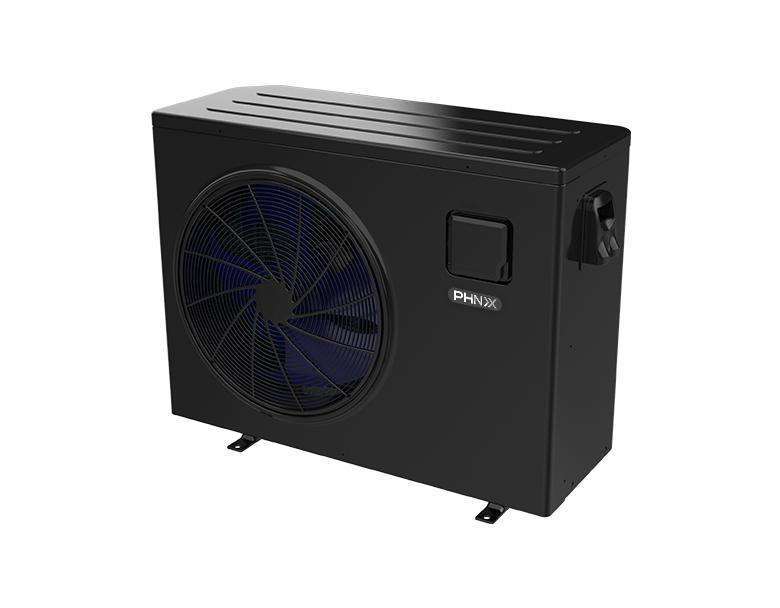

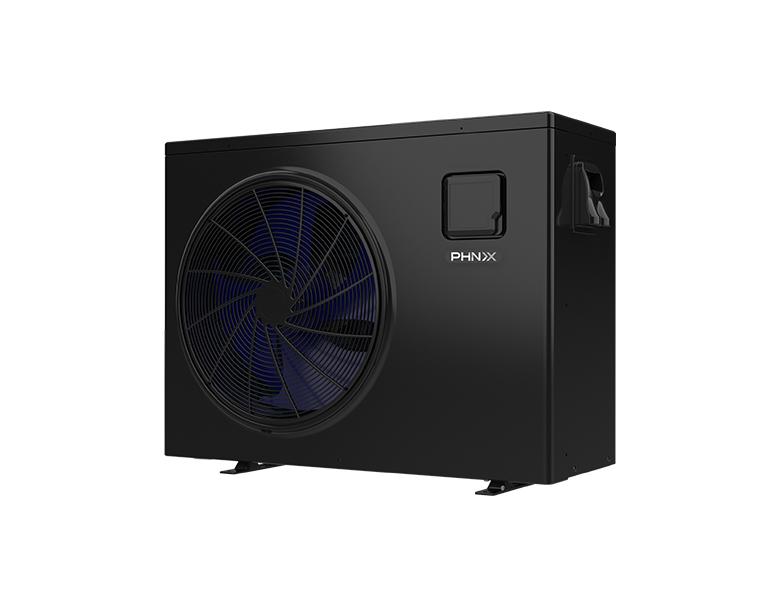

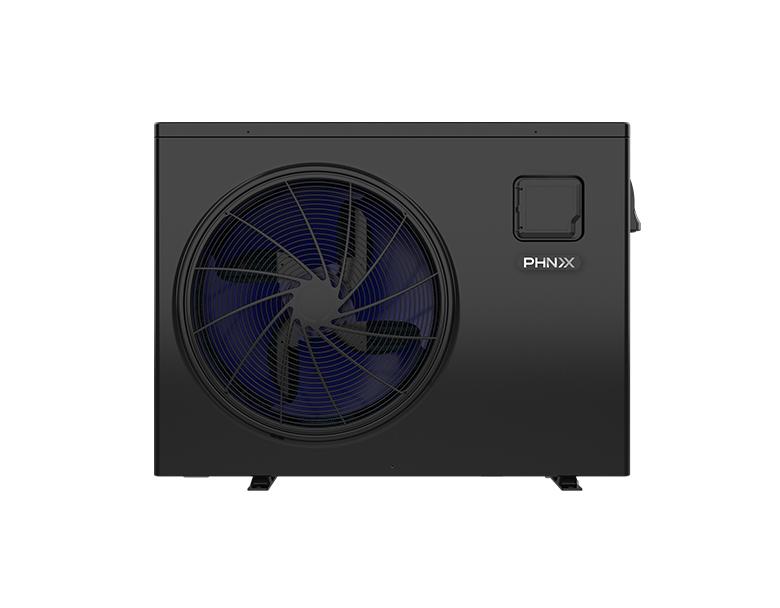

i-ForceLine Neo adopts DC inverter compressor with excellent performance. Its COP reaches as high as 10.0 at Air 27o C/Water 26o C/Humidity 80%.
Based on PHNIX mature inverter logic, the operation noise of i-ForceLine Neo can be lower at 38dB(A) at 1m distance at silence mode.
i-ForceLine Neo can be used for swimming pool heating or cooling. It is available to work at the ambient temperature of -2 °C to 40°C.

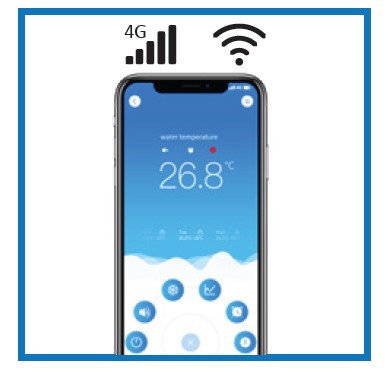

i-ForceLine Neo supports PHNIX smart APP controlconnected via WIFI or 4G DTU. Users can control the unit easily at anywhere and anytime.
The four-way valve defrosting technology of i-ForceLine Neo can automatically start defrosting according to the ambient temperature, plus a specially designed chasis with two drainage holes, the unit always runs in high efficiency.
|Operating Air Temperature (℃)||0~35|
|Advised Pool Volume (m3)||18-35||25-50||30-60||40-75||50-95|
|Performance Condition（Air 27℃/Water 26℃/Humid. 80%）|
|Heating Capacity(kW)||1.82~7.24||2.23~ 9.00||1.97~11.66||3.25~16.00||3.50~18.70|
|Consumed power (kW)||0.15-1.28||0.18-1.54||0.16-2.00||0.30-2.91||0.32-3.65|
|Heating Capacity（Air 15℃/Water 26℃/Humid. 70%）|
|Consumed power (kW)||0.24-1.28||0.27-1.47||0.29-1.91||0.44-2.80||0.47-3.24|
|Heating Capacity (Air 10℃/Water 26℃/Humid. 64%）|
|Heating Capacity (kW)||1.10-4.25||1.21-5.00||1.37-6.56||2.40-10.00||2.80-12.00|
|Heating Capacity (Btu)||3750-14500||4130-17060||4658-22303||8160-34000||9520-40800|
|Consumed power (kW)||0.24-1.33||0.25-1.56||0.27-1.79||0.53-2.94||0.63-3.43|
|Water Connection (mm)||50|
|Fan Speed (RPM)||700||800||800||750||750|
|Sound Pressure 1m dB(A)||38-50||39-51||42-53||43-54||43-55|
|Net Dimensions L/W/H||1003x403x603||1045x450x770||1165x485x870|
|The data above is only for reference. For model specifications, please refer to the nameplate on the unit.|
