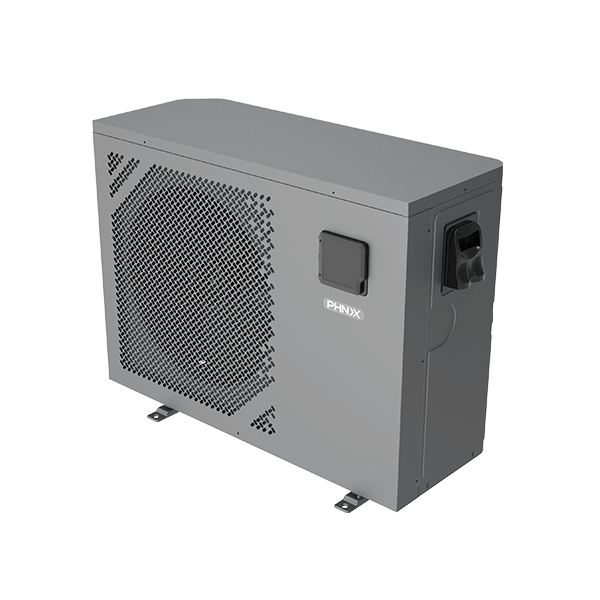

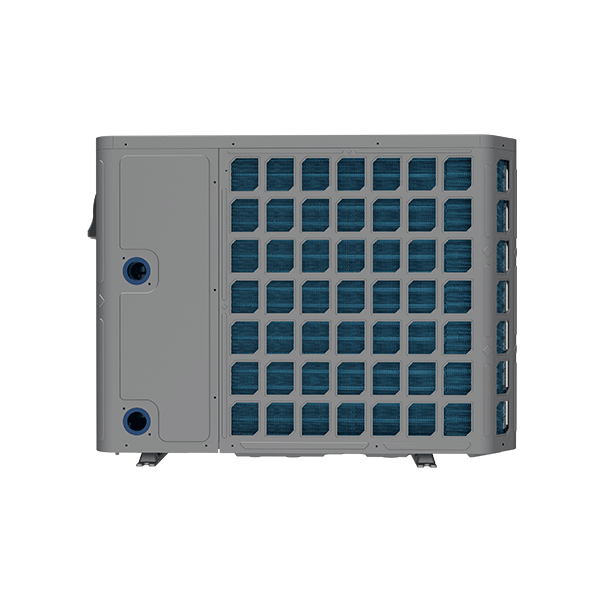

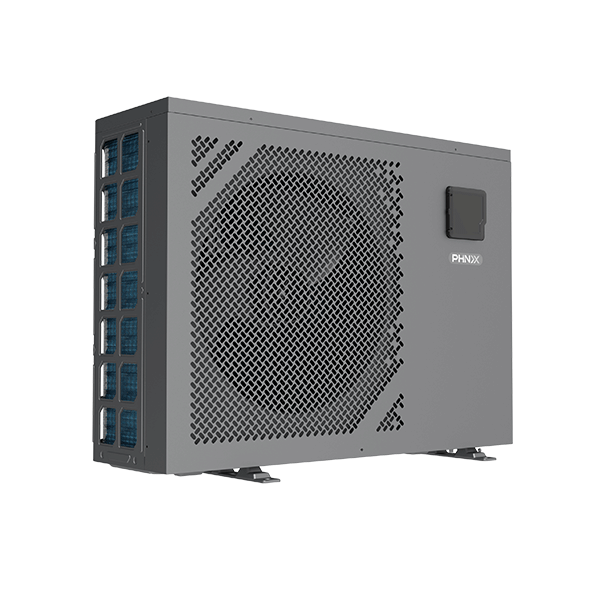

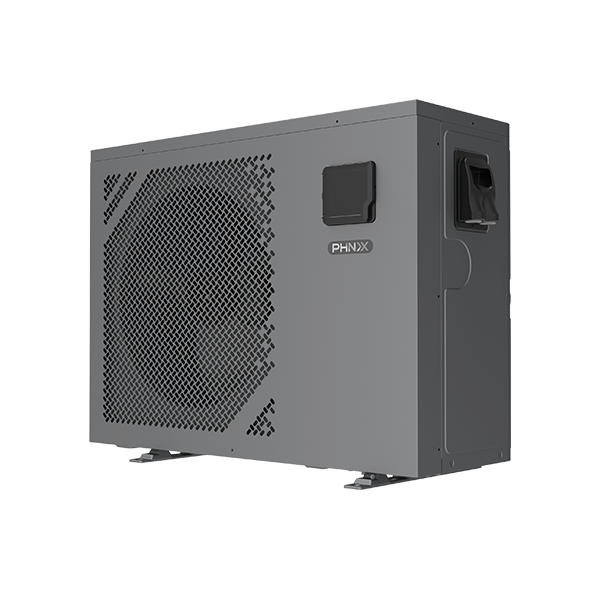

i-GreenLine Neo

Swimming Pool Heat Pump

PHNIX i-GreenLine Neo is a cost-effective R290 inverter swimming pool heat pump designed for partners seeking reliable performance. Combining AI Full Inverter technology and natural R290 refrigerant, it delivers A-class efficiency and supports climate-friendly pool heating. Its compact, logistics-friendly structure, optional smart control and potted control board make it a strong-value solution for pool equipment brands and distributors targeting the mainstream residential market.

Inquiry

Product Details

Climate-Friendly R290

Natural refrigerant with an ultra-low GWP of 0.02.
A-Class Efficiency

COP up to 15 and SCOP up to 7.
PV-Ready Pool Heating

Make smarter use of available solar power.
Compact Design

Over 20% more container capacity helps reduce shipping cost.
Year-Round Performance

Reliable operation from -20°C to 43°C.
Whisper-quiet operation

Sound pressure level as low as 39 dB(A) at 1 m.
Smart Control [Option]

Multilingual control with optional Wi-Fi and 4G DTU connectivity.
Professional AIoT Management

Centralised fleet, energy and service management through the PHNIX AIoT platform and GoHeating Pro.
AQUA TEMP App Control

Easy temperature control, mode selection, scheduling and monitoring for pool owners.

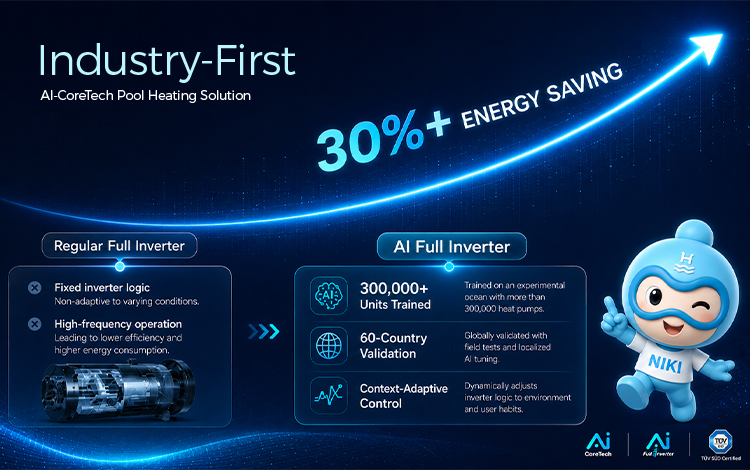

AI Full Inverter Technology

By combining data-driven learning with predictive control, PHNIX AI Full Inverter technology adapts compressor output to pool demand, usage patterns and ambient conditions in real time.
It maintains stable water temperatures while delivering up to 30% greater energy savings than regular inverter pool heat pumps, helping pool owners lower running costs and giving partners a clear sales advantage.

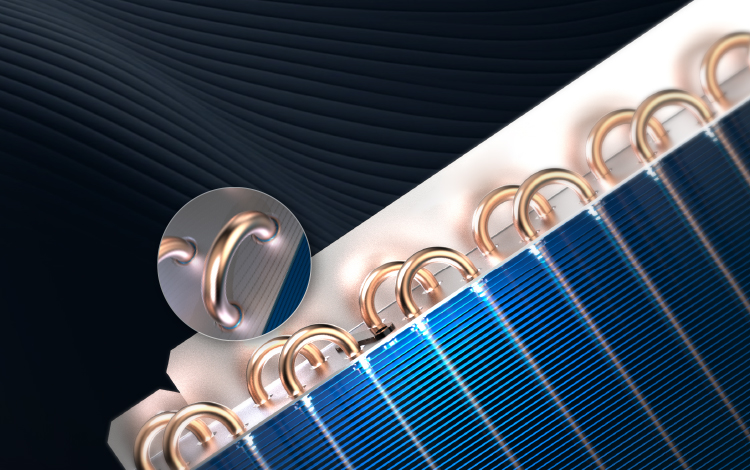

5mm Fin Tube Design

Up to 20% Higher SCOP

The innovative 5 mm fin-tube design improves heat-transfer efficiency, delivering up to a 20% increase in SCOP for higher seasonal performance and lower energy consumption.

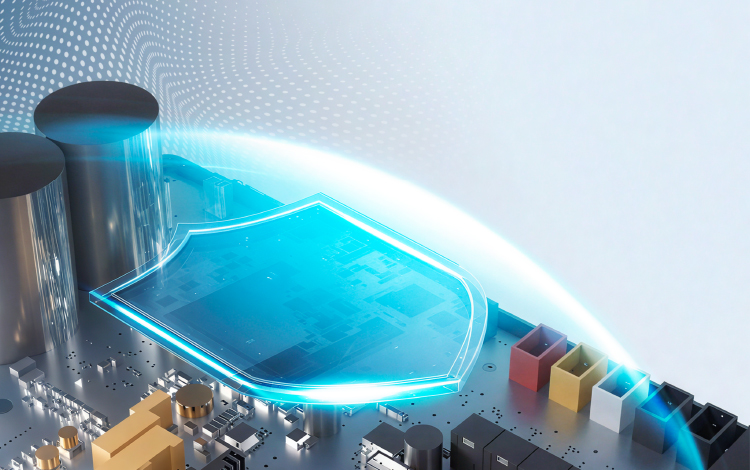

Potting Protection for the PCB

Fivefold Protection for Outdoor Reliability

The control board is potted to help resist moisture, dust, shock, pet-related damage and short circuits. This fivefold protection is designed to reduce avoidable PCB failures and support more dependable operation in demanding poolside environments.

Product parameters

MODEL	i-GreenLine-NEO	015- BP19	020- BP19	030-BP19	040-BP19	050-BP19	060-BP19	060S-BP19	070S-BP19
Operating air temperature (℃)		-15~43℃	-15~43℃	-15~43℃	-15~43℃	-15~43℃	-15~43℃	-15~43℃	-15~43℃
Refrigerant		R290	R290	R290	R290	R290	R290	R290	R290
Certification		CE/CB	CE/CB	CE/CB	CE/CB	CE/CB	CE/CB	CE/CB	CE/CB
Performance Data
SCOP(EN17645)		7	7	7	7	7	7	7	7
Air 27℃/Water 26℃ /Humid. 80%	Heating Capacity(kW)	2.8~7.2	3.1~9.5	3.4~12.0	5.8~17.0	6.0~20.0	9.5~25.0	9.5~25.0	10.6~30
	Consumed power (kW)	0.187~1.137	0.207~1.613	0.227~1.967	0.387~3.282	0.400~3.795	0.633~4.098	0.633~4.098	0.707~5.000
	COP	15.0-6.33	15.0-5.89	15.0-6.1	15.0~5.18	15.0-5.27	15.0-6.1	15.0-6.1	15.0-6.0
Air 15℃/Water 26℃ /Humid. 70%	Heating Capacity(kW)	1.3~5.61	1.5~7.15	1.6~8.25	2.6~12.1	2.64~13.75	4.18~18.8	4.18~18.8	5.8~22.3
	Consumed power (kW)	0.191~1.189	0.230~1.589	0.246~1.833	0.394~2.630	0.400~2.970	0.624~4.087	0.624~4.087	0.853~4.715
	COP	6.8~4.72	6.5~4.5	6.5~4.5	6.6~4.6	6.6~4.63	6.7~4.6	6.7~4.6	6.8~4.73
Air 35℃/Water 29℃ /Humid. 64%	Cooling Capacity(kW)	3	3.7	4.2	7.9	8.8	14	14	16.5
Technical data
Power Supply		220-240V~/1Ph						380V~/3Ph
Fan Quantity		1	1	1	1	1	1	1	1
Fan speed		500~800	600-850	700-850	700-800	650-750	500~750	500~750	500-750
Sound Pressure 1m dB(A)		39-47.5	40-48	40-49	45.4-53	47-51	47.6-55	47.6-55	47.6-56
Sound Pressure 10m dB(A)		21.5-30	22.5-30.5	22.5-31.5	25-35	30-34	30.9-38	30.9-38	30.9-39.2
Water Connection (mm)		50
Water Flow Volume (m3/h)		2.8	3.8	4.4	6.2	7.7	9.7	9.7	11.0
Water Pressure Drop (max) kPa		4.0	4.0	4.5	5.0	8.0	15	15	22
Net Dimensions L/W/H （mm）		888360608			1002×453×767.5		1160×490×862
Package dimension		970×410×630			1130×485×780		1210×510×880
Qty per 20’GP/40’GP/40’HQ		78/168/168			44/96/96		38/82/82
