i-GreenLine Pro
Swimming Pool Heat Pump
PHNIX i-GreenLine Pro is an advanced R290 inverter swimming pool heat pump that brings AI Full Inverter and AI Smart Grid technologies together in one intelligent system. By adapting to water temp., weather and local electricity prices, etc., it enables smarter heating and control over running costs. Its aluminium-alloy casing and connected management capabilities create a distinctive product for innovation-led pool brands and distributors.
Product Details
-
Climate-Friendly R290Natural refrigerant with an ultra-low GWP of 0.02. -
Year-Round PerformanceReliable operation from -20°C to 43°C. -
Whisper-quiet operationSound pressure level as low as 18.6 dB(A) at 10 m. -
Multilingual ControlAvailable in 12 languages for easier local operation across local markets. -
A-Class EfficiencySCOP of up to 8.42. -
PV-Ready Pool HeatingMake smarter use of available solar power. -
Professional AIoT ManagementCentralised fleet, energy and service management through the PHNIX AIoT platform and GoHeating Pro. -
AQUA TEMP App ControlEasy temperature control, mode selection, scheduling and monitoring for pool owners.
-

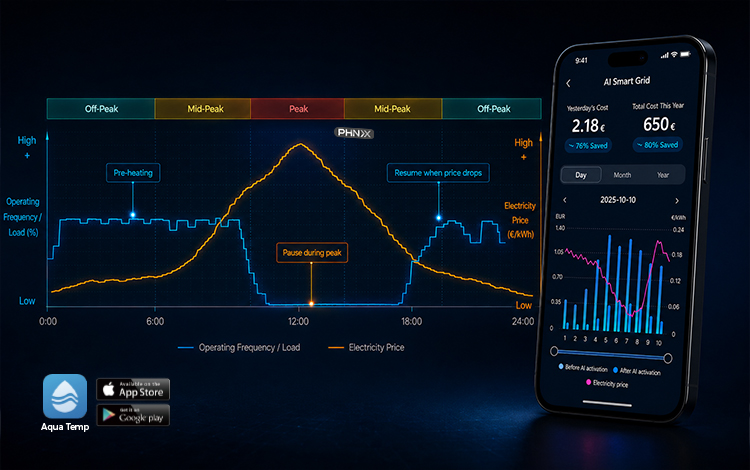

AI Full Inverter & AI Smart GridSmarter Heating. 10x Electricity Bills Saving.With a built-in AI Wi-Fi module, PHNIX i-GreenLine Pro brings together changing weather, water temperature, pool-use patterns and local electricity prices to continuously optimise its heating strategy.
AI Full Inverter technology delivers more than 30% greater energy savings than traditional inverter control. AI Smart Grid further reduces electricity costs by prioritising heating during lower-price periods—multiplying electricity-bill savings by up to 10 across varying price cycles compared with conventional operating logic. -
Built-In R290 SafetyBuilt-in refrigerant leak detection continuously monitors R290 concentration. If an abnormal level is detected, the system triggers an alarm, stops operation and sends notifications to both the controller and the app.
-
Fully Potting DesignPremium Design. Built for Outdoor Living.The lightweight yet durable aluminium-alloy casing supports reliable operation under changing outdoor conditions. Its distinctive woven front panel conceals the fan blade and creates a cleaner, more integrated appearance—giving partners a premium product that stands out in both performance and design.
Product parameters
| MODEL | i-GreenLine-PRO | 015- BP03 | 020- BP03 | 030-BP03 | 035-BP03 | 040-BP03 | 050-BP03 | 060-BP03 | 060S-BP03 | 070S-BP03 |
| Operating air temperature (℃) | -20~43℃ | -20~43℃ | -20~43℃ | -20~43℃ | -20~43℃ | -20~43℃ | -20~43℃ | -20~43℃ | -20~43℃ | |
| Refrigerant | R290 | R290 | R290 | R290 | R290 | R290 | R290 | R290 | R290 | |
| Certification | CE/CB | CE/CB | CE/CB | CE/CB | CE/CB | CE/CB | CE/CB | CE/CB | CE/CB | |
| Performance Data | ||||||||||
| SCOP(EN17645) | 7.2 | 7.25 | 7.48 | 7.2 | 8 | 8.2 | 7.2 | 7.2 | 7.1 | |
| Air 27℃/Water 26℃ /Humid. 80% | Heating Capacity(kW) | 3.9-7.5 | 4.02-9.0 | 4.3-11.2 | 5.64-13 | 5.64-16 | 6.29-20.5 | 6.95-25 | 6.95-25 | 6.96-30 |
| Consumed power (kW) | 0.193-1.171 | 0.196-1.500 | 0.212-1.836 | 0.275-2.167 | 0.275-2.667 | 0.295-3.417 | 0.348-3.906 | 0.339-3.906 | 0.345-4.839 | |
| COP | 20.2~6.4 | 20.5~6.0 | 20.3~6.1 | 20.5~6.0 | 20.5~6.0 | 21.3~6.0 | 20.0~6.4 | 20.5~6.4 | 20.2~6.2 | |
| Air 15℃/Water 26℃ /Humid. 70% | Heating Capacity(kW) | 1.43-5.6 | 1.43-7.3 | 1.62-8.7 | 2.5-10 | 2.5-12.5 | 3.05-14.8 | 3.3-18.6 | 3.3-18.6 | 3.3-22.3 |
| Consumed power (kW) | 0.180-1.143 | 0.180-1.521 | 0.203-1.813 | 0.294-2.083 | 0.294-2.604 | 0.339-3.083 | 0.402-3.796 | 0.402-3.796 | 0.413-4.551 | |
| COP | 7.93~4.9 | 7.93~4.8 | 8.0~4.8 | 8.5~4.8 | 8.5~4.8 | 9.0~4.8 | 8.2~4.9 | 8.2~4.9 | 8.0~4.9 | |
| Air 35℃/Water 29℃ /Humid. 64% | Cooling Capacity(kW) | 2.8 | 3.8 | 6.4 | 6.8 | 7.9 | 11 | 15.5 | 15.5 | 18 |
| Technical data | ||||||||||
| Power Supply | 220-240V~/1Ph 50HZ(60HZ) | 380V~/3Ph 50HZ(60HZ) | ||||||||
| Fan Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Fan speed | 800 | 800 | 800 | 700 | 700 | 750 | 750 | 750 | 750 | |
| Sound Pressure 1m dB(A) | 32~48 | 32~49 | 32~50 | 32~50 | 40~52 | 41~53 | 42~54 | 42~54 | 43~55 | |
| Sound Pressure 10m dB(A) | 18.6~25.6 | 18.6~25.6 | 18.6~26.6 | 18.6~27.1 | 22.6~29.6 | 23.6~32.6 | 24.6~33.6 | 24.6~33.6 | 25.6~35.6 | |
| Water Connection (mm) | 50 | |||||||||
| Water Flow Volume (m3/h) | 3.0 | 3.9 | 4.4 | 5.2 | 6.9 | 8.0 | 9.8 | 9.8 | 11.0 | |
| Water Pressure Drop (max) kPa | 2.4 | 3.5 | 4.3 | 5.6 | 6.9 | 8.7 | 10.4 | 10.4 | 10.4 | |
| Net Dimensions L/W/H （mm） | 888*360*608 | 1002×453×767.5 | 1160×490×862 | |||||||
| Package dimension | 970×410×630 | 1130×485×780 | 1210×510×880 | |||||||
| Qty per 20’GP/40’GP/40’HQ | 78/168/168 | 44/96/96 | 38/82/82 | |||||||
