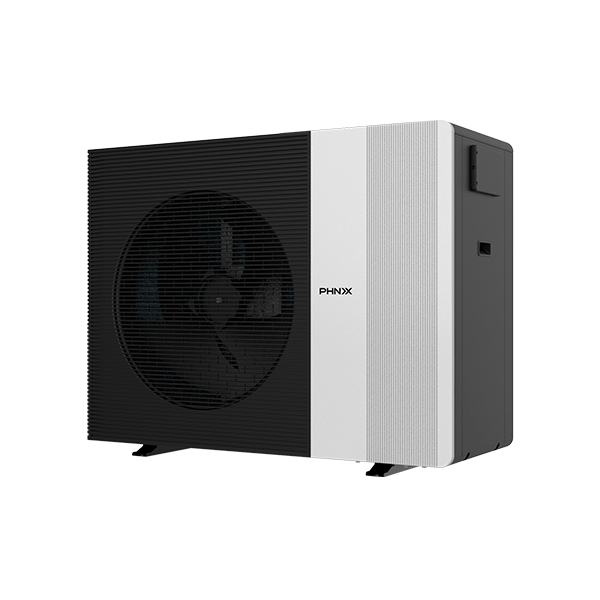

i-GreenLine Ultra
Swimming Pool Heat Pump
PHNIX i-GreenLine Ultra is a premium R290 swimming pool heat pump combining AI Full Inverter Technology, whisper-quiet operation and intelligent control. PV-ready operation, robust outdoor protection and flexible OEM/ODM options make it a future-ready solution for pool equipment brands and distributors seeking a high-value residential pool heating range.
Product Details
-
Climate-Friendly R290Natural refrigerant with an ultra-low GWP of 0.02. -
Year-Round PerformanceReliable operation from -20°C to 43°C. -
Whisper-quiet operationSound pressure level as low as 29.7 dB(A) at 1 m. -
Multilingual ControlAvailable in 12 languages for easier local operation across local markets. -
Outstanding Seasonal EfficiencySCOP of up to 8.4. -
PV-Ready Pool HeatingMake smarter use of available solar power. -
Professional AIoT ManagementCentralised fleet, energy and service management through the PHNIX AIoT platform and GoHeating Pro. -
AQUA TEMP App ControlEasy temperature control, mode selection, scheduling and monitoring for pool owners.
-
AI Full Inverter TechnologySmarter Heating. Lower Running Costs.By combining data-driven learning with predictive control, PHNIX AI Full Inverter technology adapts compressor output to pool demand, usage patterns and ambient conditions in real time.
It maintains stable water temperatures while delivering up to 30% greater energy savings than regular inverter pool heat pumps, helping pool owners lower running costs and giving partners a clear sales advantage. -
5mm Fin Tube DesignUp to 20% Higher SCOPThe innovative 5 mm fin-tube design improves heat-transfer efficiency, delivering up to a 20% increase in SCOP for higher seasonal performance and lower energy consumption. -

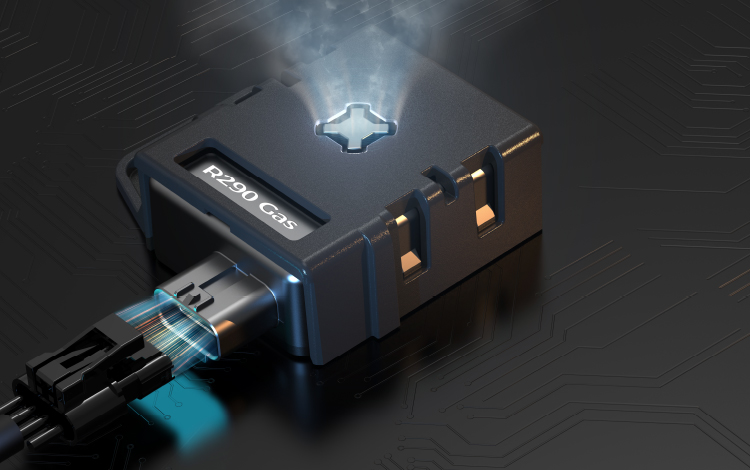

Built-In R290 SafetyBuilt-in refrigerant leak detection continuously monitors R290 concentration. If an abnormal level is detected, the system triggers an alarm, stops operation and sends notifications to both the controller and the app. -
Fully Potting DesignThe fully potted PCB protects critical electronic components against moisture, insects and corrosion—three common challenges in outdoor poolside environments.
This protection supports long-term reliability while helping distributors and service teams reduce maintenance costs.
Product parameters
| Model | 020- BP16 | 030-BP16 | 040-BP16 | 050-BP16 | 060-BP16 | 070-BP16 | 050S-BP16 | 060S-BP16 | 070S-BP16 | |
| Advised Pool Size | m³ | 30~40 | 45~60 | 60~80 | 75~100 | 90~120 | 105~140 | 75~100 | 90~120 | 105~140 |
| Operatngrange | ℃ | -20℃-43℃ | -20℃-43℃ | -20℃-43℃ | -20℃-43℃ | -20℃-43℃ | -20℃-43℃ | -20℃-43℃ | -20℃-43℃ | -20℃-43℃ |
| Refrigerant | R290 | R290 | R290 | R290 | R290 | R290 | R290 | R290 | R290 | |
| Certification | CB/CE | CB/CE | CB/CE | CB/CE | CB/CE | CB/CE | CB/CE | CB/CE | CB/CE | |
| Performance Data | ||||||||||
| Heating Performance | ||||||||||
| SCOP EN17645 | 8.4 | 7.8 | 8.4 | 7.6 | 7.5 | 7.4 | 7.6 | 7.5 | 7.4 | |
| Air 27℃/Water 26℃ /Humid. 80% | Heating capacity (kW) - BOOSTMode | 11.1 | 15 | 18.4 | 22.1 | 27.5 | 32 | 22.1 | 27.5 | 32 |
| capacity(kW) | 4.05-10.20 | 4.4-13.1 | 5.31-16.70 | 6.21-20.20 | 6.95-25.0 | 6.95-30.00 | 6.21-20.20 | 6.95-25.00 | 7.07-30.00 | |
| Consumed power (kW) | 0.18-1.42 | 0.20-1.79 | 0.22-2.14 | 0.25-2.56 | 0.31-3.42 | 0.32-4.28 | 0.25-2.56 | 0.31-3.42 | 0.33-4.23 | |
| COP | 22.5~7.2 | 22.0-7.3 | 24.1-7.8 | 24.8-7.9 | 22.4-7.3 | 21.7 ~ 7.0 | 24.8-7.9 | 22.4~7.3 | 21.4 ~ 7.1 | |
| Air 15℃/Water 26℃ /Humid. 70% | Heating capacity (kW) - BOOSTMode | 8.00 | 11.00 | 13.50 | 16.00 | 19.00 | 22.50 | 16.00 | 19.00 | 22.50 |
| capacity(KW) | 1.35-7.80 | 1.52-9.80 | 2.13-12.50 | 2.95-15.10 | 3.0-18.5 | 3.00-21.50 | 2.95-15.10 | 3.00-18.50 | 3.00-21.50 | |
| Consumed power (kW) | 0.16-1.4 | 0.18-1.8 | 0.24-2.2 | 0.32-2.8 | 0.34-3.4 | 0.34-4.1 | 0.32-2.8 | 0.35-3.4 | 0.35-4.1 | |
| COP | 8.5 ~ 5.5 | 8.5 ~ 5.4 | 8.7 ~ 5.6 | 9.2 ~ 5.4 | 8.8 ~ 5.4 | 8.7~5.2 | 9.2 ~ 5.4 | 8.5~5.4 | 8.5 ~ 5.2 | |
| Cooling Performance | ||||||||||
| Air 35℃/Water 30℃ /Humid.40% | capacity(KW) | 4.76 | 5.32 | 9.62 | 12.00 | 15.00 | 18.00 | 12.00 | 15.00 | 18.00 |
| EER | 3.7 | 2.4 | 2.8 | 3.3 | 3.4 | 3.4 | 3.3 | 2.6 | 2.6 | |
| Technical data | ||||||||||
| Power supply | 230V~/50Hz | 380V/3N~/50Hz | ||||||||
| Fan Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Fan speed | 500-600 | 600-650 | 500-600 | 550-650 | 650-750 | 650-750 | 550-650 | 700-750 | 700-750 | |
| Sound Pressure 1m dB(A) | 37~43 | 39~43.5 | 40~44.5 | 41~48 | 42~50 | 43~51 | 41-48 | 43~51 | 43~51 | |
| Sound Pressure 3m dB(A) | 29~35.3 | 31-35.8 | 32-36.8 | 33~40.3 | 34~42.0 | 35~43.0 | 33~40.3 | 35~43.0 | 35~43.0 | |
| Sound Pressure 10m dB(A) | 20~25.6 | 21.6~26.0 | 22.6~27.1 | 23.6~30.6 | 24.6~32.6 | 25.6~33.6 | 23.6~30.6 | 25.6~33.6 | 25.6~33.6 | |
| Max consumed power(kW) | 2.380 | 3.540 | 3.560 | 4.400 | 5.150 | 5.450 | 4.605 | 5.620 | 6.000 | |
| Max current(A) | 10.4 | 15.5 | 15.7 | 19.3 | 22.5 | 24.81 | 7.28 | 8.99 | 9.67 | |
| Water Connection (mm) | 50 | |||||||||
| Water Flow Volume (m3/h) | 4.4 | 5.6 | 7.2 | 8.7 | 10.7 | 12.9 | 8.7 | 10.7 | 12.9 | |
| Water Pressure Drop (max) kPa | 3 | 4 | 5 | 8 | 15 | 15 | 8 | 15 | 15 | |
| Net Dimensions L/W/H (mm) | 1060*475*768 | 1144*489*865 | ||||||||
| Package dimension | 1130*485*910 | 1210*515*1010 | ||||||||
| Qty per 40’HQ | 96 | 96 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | |
| Refrigerant volume | g | 300 | 400 | 500 | 650 | 850 | 850 | 650 | 850 | 850 |
