i-ForceLine Mix

Swimming Pool Heat Pump

PHNIX i-ForceLine Mix is a versatile R32 full inverter swimming pool heat pump designed for larger pools and space-sensitive installations. Its vertical airflow design provides greater installation flexibility, while the Mitsubishi DC inverter compressor and variable-speed fan deliver a COP of up to 16. It gives brands, importers and distributors a proven platform for a wider range of residential and light-commercial projects.

Inquiry

Product Details

R32 Refrigerant

Proven performance for efficient and reliable pool heating.
High-Efficiency Heating

COP of up to 16.
Full Inverter Technology

Variable-speed compressor and fan operation balance heating speed, efficiency and comfort.
Reliable Year-Round Performance

Stable operation from -7°C to 43°C.
Smart APP Control

Easy pool management through Wi-Fi or 4G connectivity.
Low-Noise Operation

Sound pressure level as low as 46 dB(A) at 1 m.

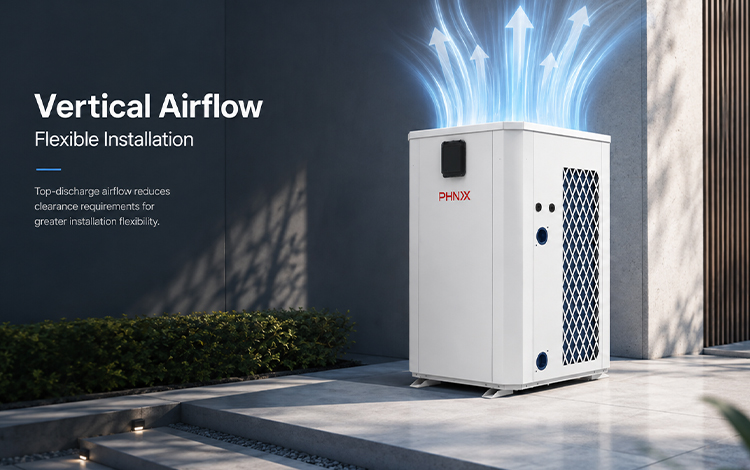

Vertical Airflow Design

Flexible Installation

The top-discharge airflow reduces the horizontal clearance required around the unit. This gives installers greater installation flexibility and helps partners serve projects where conventional side-discharge heat pumps may not fit.

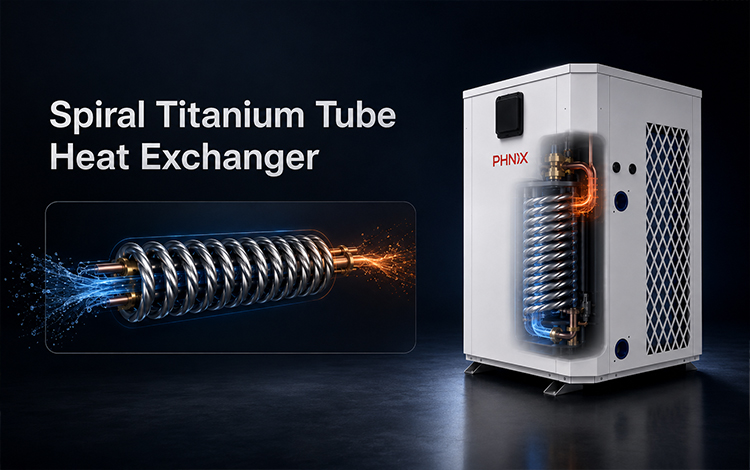

Spiral Titanium Tube Heat Exchanger

Up to 30% Higher Heat-Exchange Efficiency

PHNIX’s 9.52 mm twisted titanium tube increases the heat-transfer surface, delivering up to 30% higher heat-exchange efficiency than standard heat exchangers for faster, more efficient pool heating.

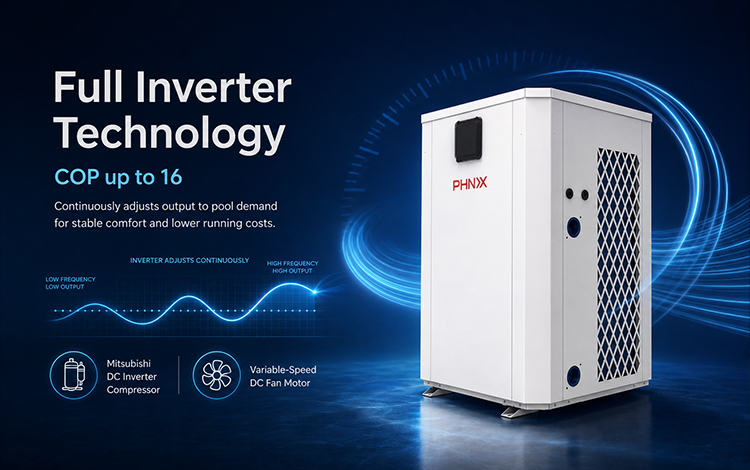

Full Inverter Technology

The Mitsubishi DC inverter compressor and variable-speed fan continuously adjust output to pool demand and ambient conditions. With a COP of up to 16, the system maintains comfortable water temperatures while helping pool owners reduce running costs.
Smart and Easy Control

Clear for Owners. Connected from Anywhere.

The 3.5-inch colour touch display provides intuitive control and real-time temperature curves. Wi-Fi or 4G connectivity also allows pool owners to monitor and manage the heat pump remotely through the app.

Product parameters

MODEL	i-ForceLine-Mix	PASRW030-U-BP8	PASRW040-U-BP8	PASRW050-U-BP8	PASRW060-U-BP8	PASRW070-U-BP8	PASRW050S-U-BP8	PASRW060S-U-BP8	PASRW070S-U-BP8	PASRW080S-U-BP8
Advised pool volume(m3)		25-55	35-70	40-80	45-95	55-115	40-80	45-95	55-115	65-130
Operating air temperature (℃)		-7~43℃
Refrigerant		R32
Certification		CE
Performance (Heating)
Air 27℃/Water 26℃ /Humid. 80%	Heating Capacity(kW)	2.52-10.8	3.51-15.39	4.41-18.9	5.31-22.14	6.03~25.74	4.59-19.44	5.22-21.96	6.3~26.55	7.38~31.23
	Consumed power (kW)	0.16-1.65	0.21-2.46	0.27-2.93	0.33-3.27	0.37~3.95	0.28-3.01	0.32-3.24	0.39~4.08	0.45~5.09
	COP	16.02-6.55	16.33-6.25	16.16-6.45	16.12-6.77	16.11~6.51	16.16-6.45	16.08-6.77	16.11~6.51	16.3~6.14
Air 15℃/Water 26℃ /Humid. 70%	Heating Capacity(kW)	1.98-8.73	2.61-10.98	3.42-14.58	4.32-16.56	4.95~21.06	3.51-14.67	4.05-17.1	5.22~22.14	5.85~24.93
	Consumed power (kW)	0.26-1.87	0.34-2.4	0.46-3.27	0.56-3.47	0.63~4.27	0.47-3.29	0.52-3.58	0.67~4.49	0.83~4.57
	COP	7.58-4.67	7.78-4.57	7.45-4.46	7.78-4.77	7.82~4.93	7.45-4.46	7.78-4.77	7.82~4.93	7.03~4.57
Air 10℃/Water 26℃ /Humid. 64%	Heating Capacity(kW)	1.71-7.2	2.34-9.72	3.06-12.69	3.87-16.38	4.41-18.81	3.15-12.6	3.6-15.3	4.41-18.81	5.49-23.31
	Consumed power (kW)	0.27-1.8	0.35-2.39	0.49-3.23	0.58-4.02	0.68-4.7	0.51-3.21	0.54-3.76	0.68-4.7	0.87-5.83
	COP	6.45-4.0	6.67-4.06	6.23-3.93	6.64-4.07	6.48-4.0	6.23-3.93	6.64-4.07	6.48-4.0	6.33-4.0
Technical data
Power Supply		220-240V~/1Ph			220-240V~/1Ph	220-240V~/1Ph	380-400V~/3Ph	380-400V~/3Ph	380-400V~/3Ph	380-400V~/3Ph
Fan Quantity		1	1	1	1	1	1	1	1	1
Fan Speed (RPM)		600-750	700-800	700-800	700-800	700-800	700-800	700-800	700-800	700-800
Sound Pressure 1m dB(A)		44-54	46-56	48-58	50-60	53-62	48-58	50-60	53-62	55-65
Sound Pressure 10m dB(A)		24-34	26-36	28-38	30-40	33-43	28-38	30-40	33-43	35-45
Water Connection (mm)		50
Water Flow Volume (m3/h)		6	7.5	9.0	9.8	12.0	9.0	9.8	12.0	14.6
Water Pressure Drop (max) kPa		6.7	8.5	16	16	23	16	16	23	23
Net Dimensions L/W/H （mm）		600600925	600600925	690690980	6906901090	7507501200	6906901090	6906901090	7507501200	7507501200
